4-50. SPRING ASSEMBLY REPLACEMENT ((M197A1 AND M198A1) (Con't).
2.Inspect all parts for cracks, distortion, damaged threads, excessive corrosion, or other damage. If any leaf spring is
damaged, replace entire spring assembly.
3.Replace all damaged parts.
c.
INSTALLATION
1.If bumper (8) was removed, thoroughly clean and dry bumper recess in bracket (15). Cement new bumper to bracket
using adhesive.

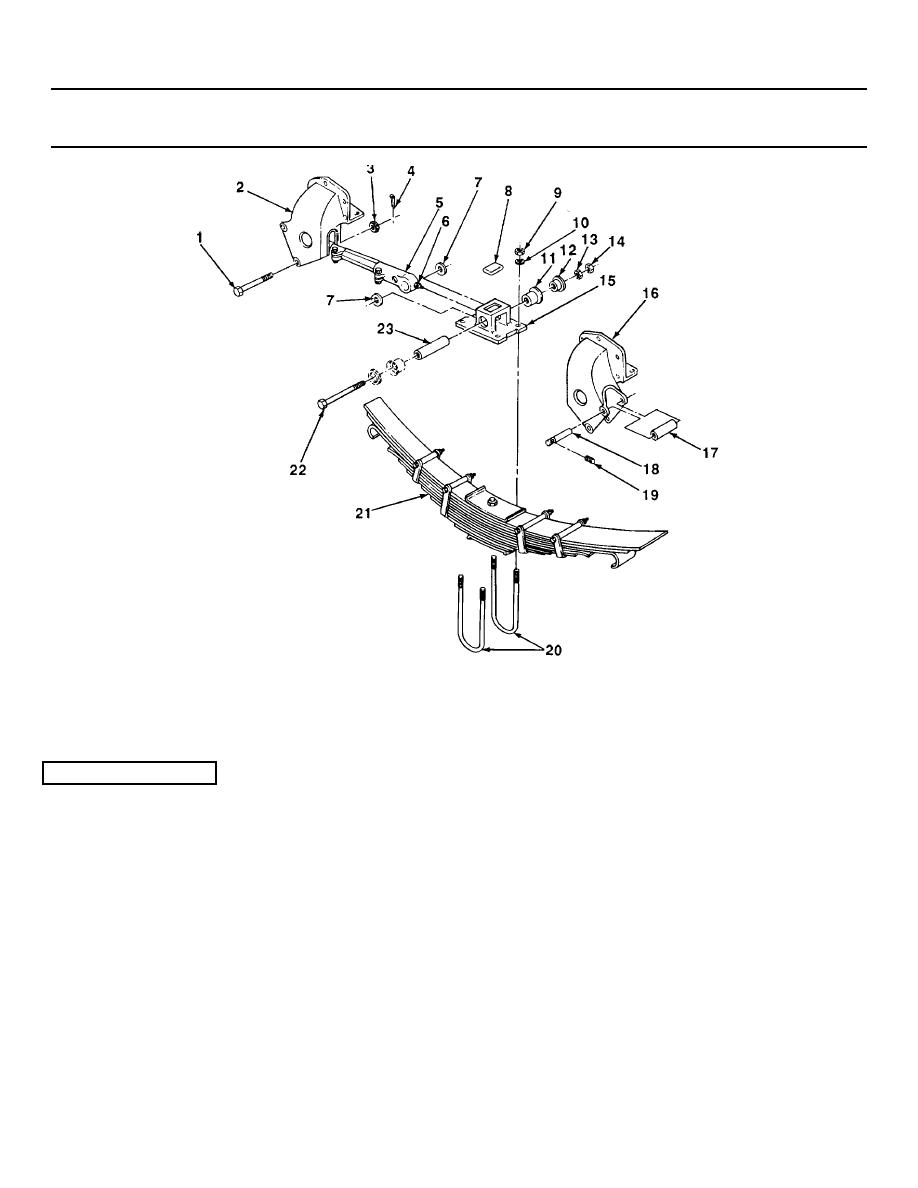

2.Install roller (17) and shaft (18) in each spring bracket (2 and 16). Install two setscrews (19) in each shaft.
3.Position spring assembly (21) on spring seat in alinement with spring brackets (2 and 16).
4.Position bracket (15) on top of spring assembly (21).
5.Install two U-bolts (20) using four washers (10) and nuts (9).
6.Install two washers (7) on radius rod (5).
