TM 9-2330-227-14&P

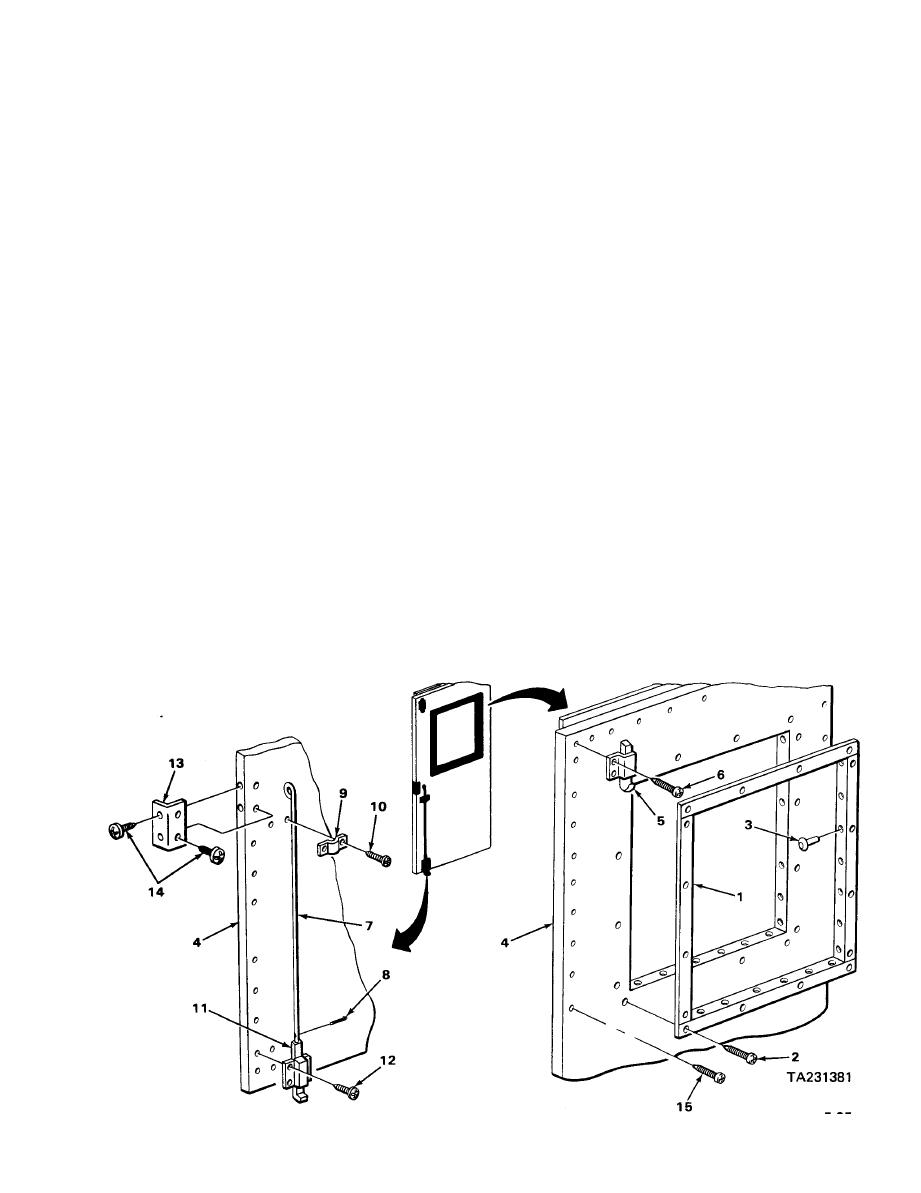

LEFT REAR DOOR -CONTINUED
ACTION
LOCATION
ITEM
REMARKS
REPAIR CONTINUED
Latch (5)
Lift off.
5. Door(4)
Using slip-joint pliers, straighten and
Cotter pin (8)
6. Rod(7)
pull out.
Two screws (10)
Using number two cross-tip screwdriver,
7. Clamp(9)
unscrew and take out.
Clamp (9) and
Lift off.
6. Door(4) and
latch (11)
rod (7)
Using number two cross-tip screwdriver,
Four screws (12)
9. Latch(11)
unscrew and take out.
Latch (11)
Lift off.
10. Door (4)
Using number two cross-tip screwdriver,
Four screws (14)
11. Plate (13)
unscrew and take out.
Plate (13)
Lift off.
12. Door (4)
Using number two cross-tip screwdriver,
36 screws (15)
13.
unscrew and take out.
5-85
