4-32. COMPOSITE STOPLIGHT-TAILLIGHT MAINTENANCE (LATE MODEL) (ALL
EXCEPT M373A3 AND M373A4).
This Task Covers:
c . Installation
a.
Lamp Replacement
b.
Removal
Initial Setup:
Materials/Parts:
Equipment Conditions:
lntervehicular cable disconnected from semitrailer
Two Iockwashers
Tools/Test Equipment:
General mechanic's tool kit
LAMP REPLACEMENT
a.

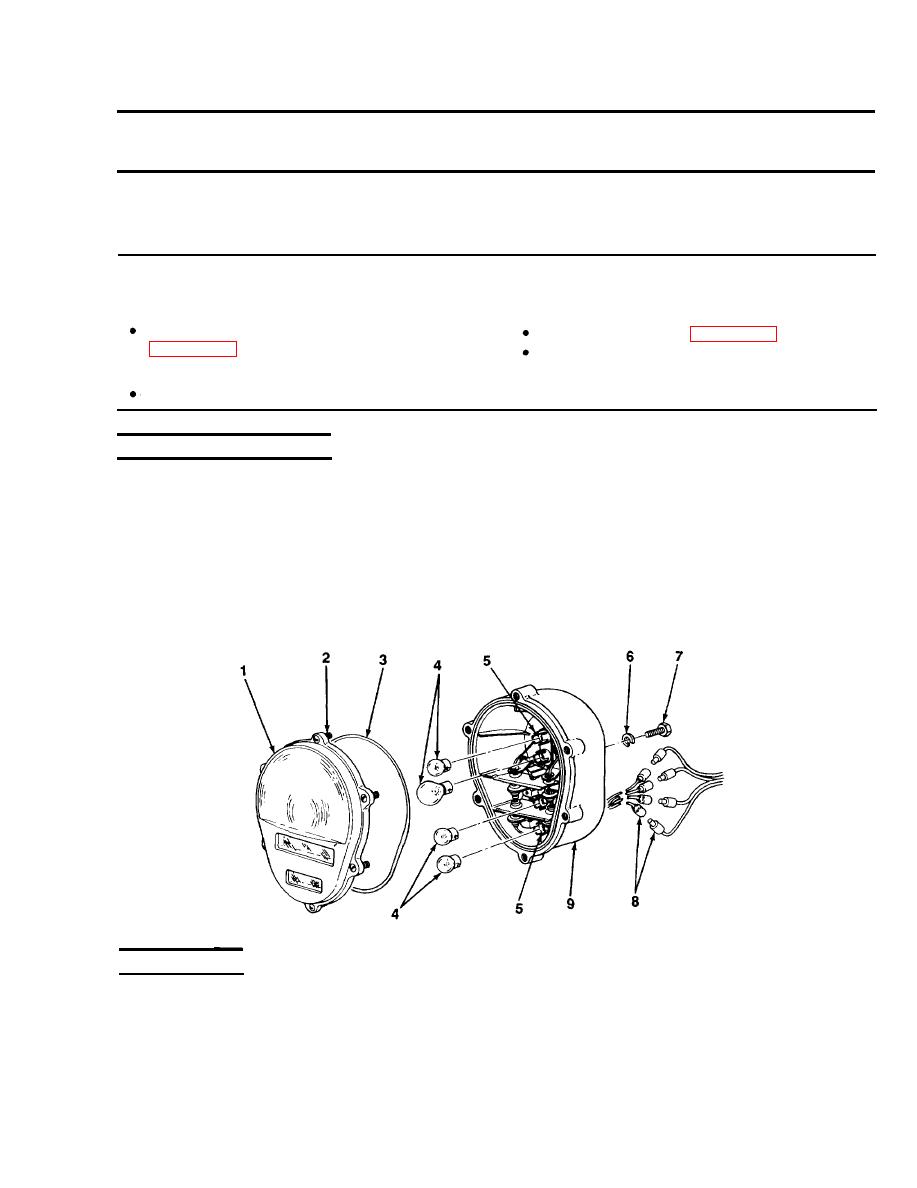

1. Loosen six captive screws (2) and remove lens (1) from body (9). Inspect preformed packing (3) for damage. If
damaged, remove and replace.
2. Push in on lamps (4), turn counterclockwise, and remove from sockets (5).
3. Install lamps (4) in sockets (5) and turn clockwise.
4. Install lens (1) and preformed packing (3) on body (9). Tighten six captive screws (2).
b.
REMOVAL
1.
Tag and disconnect four connectors (8) from wiring harness.
2.
Remove two screws (1), Iockwashers (6), and body (9) from mounting bracket. Discard Iockwashers.
TA700188
4-59
