TM 9-2330-251-14&P
4-34. HYDRAULIC BRAKE LINES, HOSES, AND FITTINGS REPLACEMENT (M416A1) (Con't).

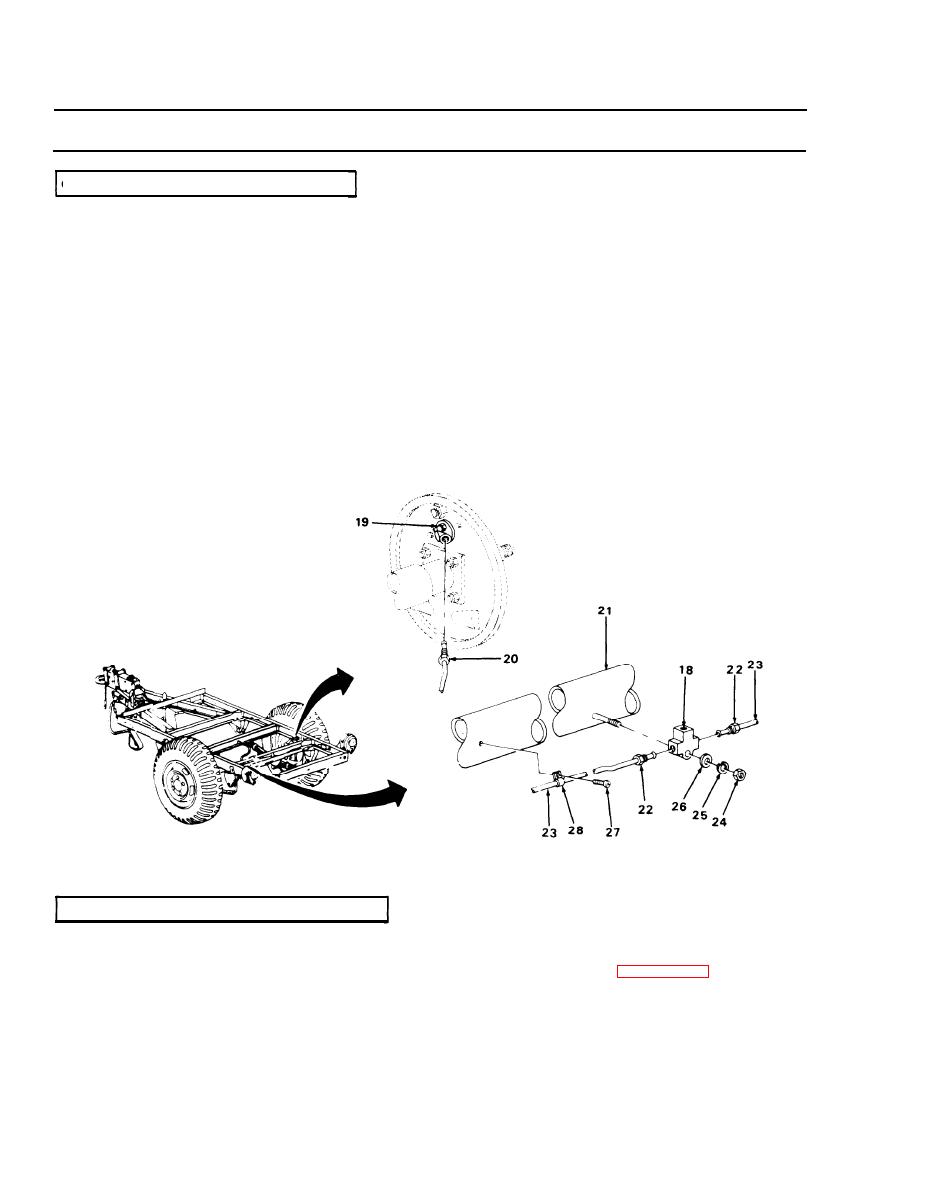

AXLE TUBE ASSEMBLY REMOVAL
d.
NOTE
A suitable container should be used to catch any draining brake fluid. Ensure that all
spills are cleaned up.
1.
Loosen 2 inverted nuts (22) and disconnect 2 tube assemblies (23) from tee (18).
Loosen 2 inverted nuts (20) and disconnect 2 tube assemblies (23) from wheel cylinders (19).
2.
Remove 2 screws (27) and clamps (28) securing 2 tube assemblies (23) to axle (21). Remove tube
3.
assemblies.
Remove 2 clamps (28) from tube assemblies (23),
4.
Remove nut (24), Iockwasher (25), flatwasher (26), and tee (18) from axle (21). Discard Iockwasher.
5.
e.
AXLE TUBE ASSEMBLY INSTALLATION
NOTE
For information on manufacturing tube assemblies (23), refer to Appendix G.
1.
Install tee (18) on axle (21) with flatwasher (26), new Iockwasher (25), and nut (24),
2.
Install 2 clamps (28) on 2 tube assemblies (23).
TA503937
4-54
