14-37. FRONT PLATFORM (cont)

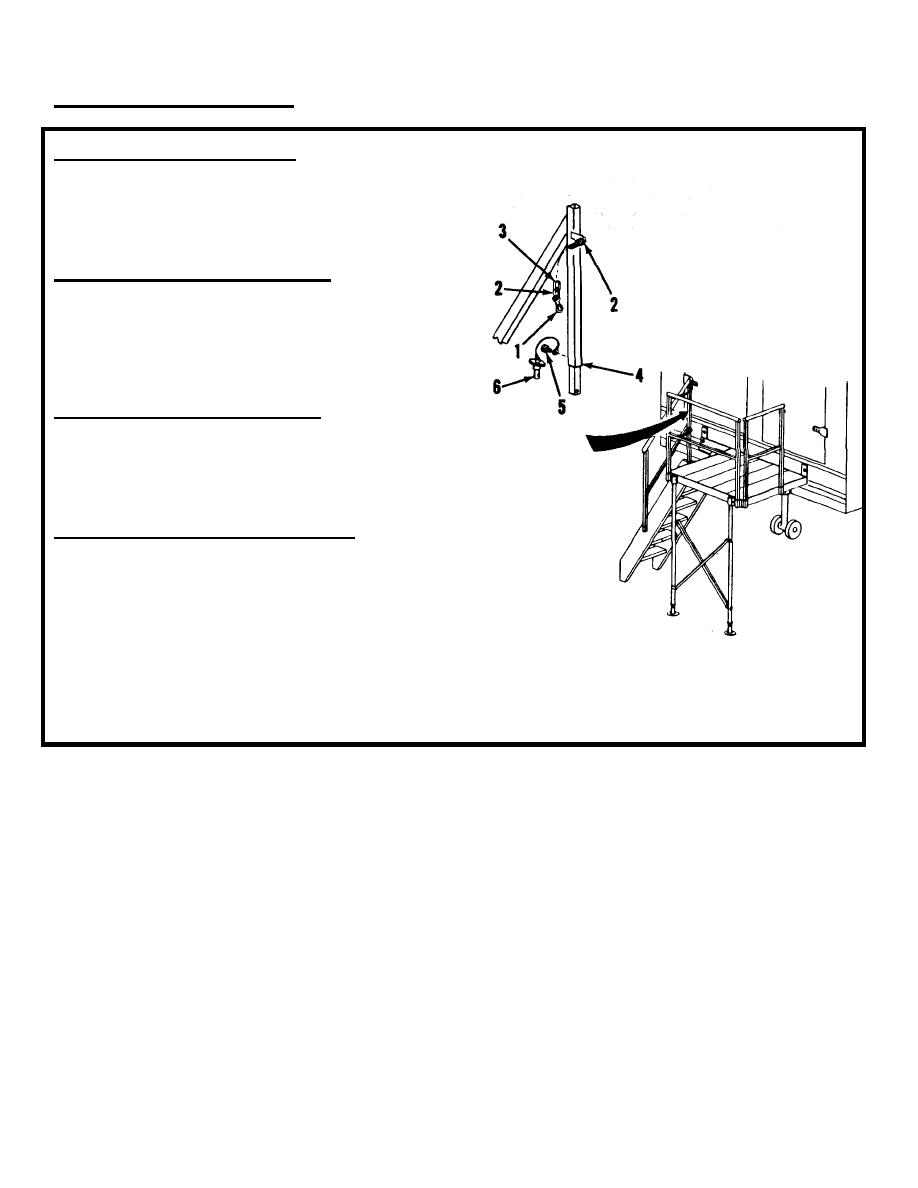

REMOVAL OF HANDRAIL CHAINS
1.
Release snap hook (1).
2.
Using bolt cutters, remove link connector (2) at
each end of chain (3).
INSTALLATION OF-HANDRAIL CHAINS
1.
At upper end of chain, insert link connector (2)
between end of chain (3) and bracket on
handrail (4).
2.
Peen ends of link connector together.
REMOVAL OF HANDRAIL LOCK PINS
1.
Remove rivet (5) securing lock pin (6) to handrail
(4).
2.
Remove lock pin.
INSTALLATION OF HANDRAIL LOCK PINS
1.
Position lock pin (6) on handrail (4).
2.
Secure with rivet (5).
1.
Snap hook
4.
Handrail
2.
Link connector
5.
Rivet
3.
Chain
6.
Lock pin
