TM 9-2330-394-13&P
ELECTRICAL SYSTEM TROUBLESHOOTING - Continued
0036 00
ELECTRICAL SYSTEM - Continued
Table 1. Electrical System Troubleshooting Procedures - Continued
MALFUNCTION
TEST OR INSPECTION
CORRECTIVE ACTION
8.
RIGHT BLACKOUT
7.
Position towing vehicle main
TAILLIGHT DOES NOT
light switch to BO DRIVE
ILLUMINATE - CONTINUED
and note reading on digital
multimeter.
8.
Position towing vehicle main
light switch to OFF.
9.
If 18-26 vdc is not present,
go to (Test Or Inspection)
step 6 of this Malfunction.
4.

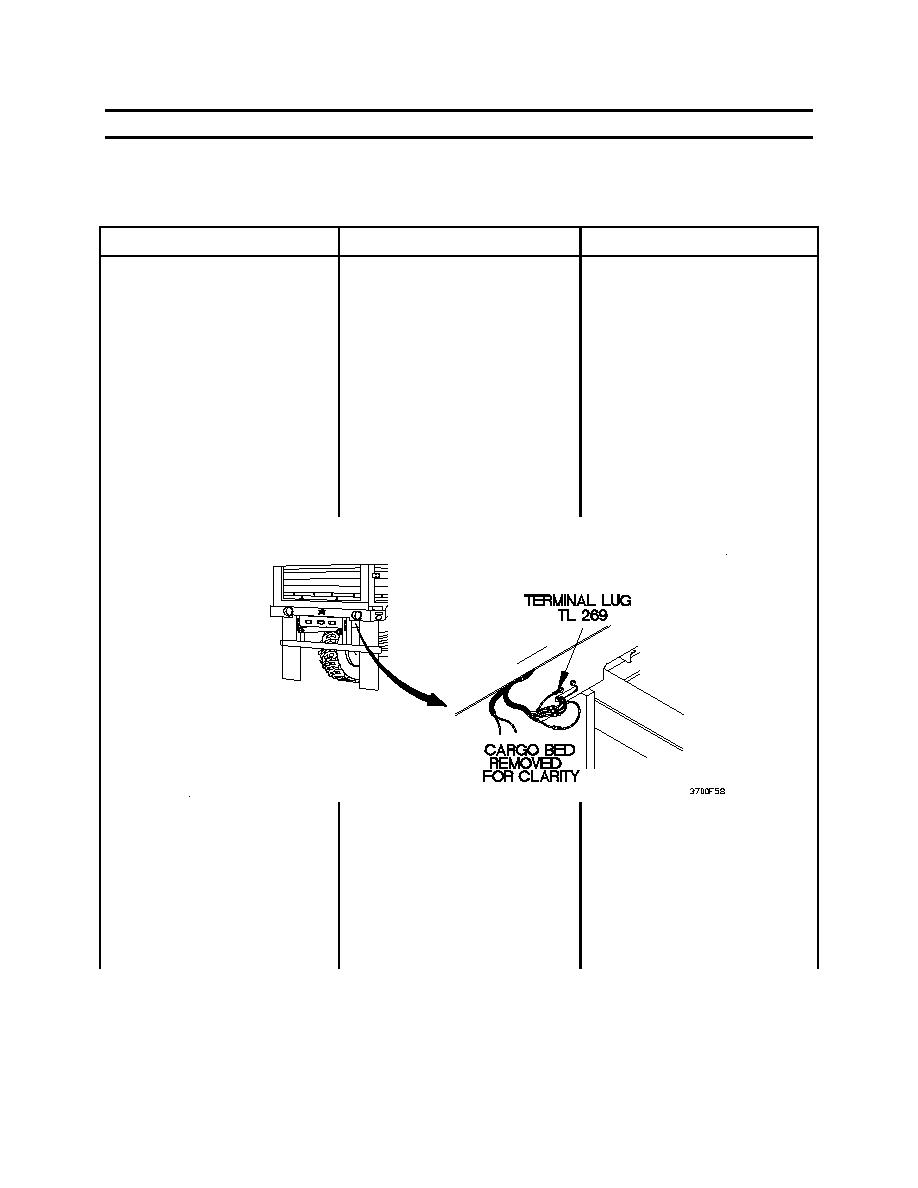

Check for continuity between
1.
Set digital multimeter to
terminal lug TL269 and a
ohms.
known good ground.
2.
Connect positive (+) probe
of digital multimeter to
terminal lug TL269.
3.
Connect negative (-) probe
of digital multimeter to a
known good ground and
note reading on digital
multimeter.
0036 00-56
