TM 9-2330-394-13&P
ELECTRICAL SYSTEM TROUBLESHOOTING - Continued
0036 00
ELECTRICAL SYSTEM - Continued

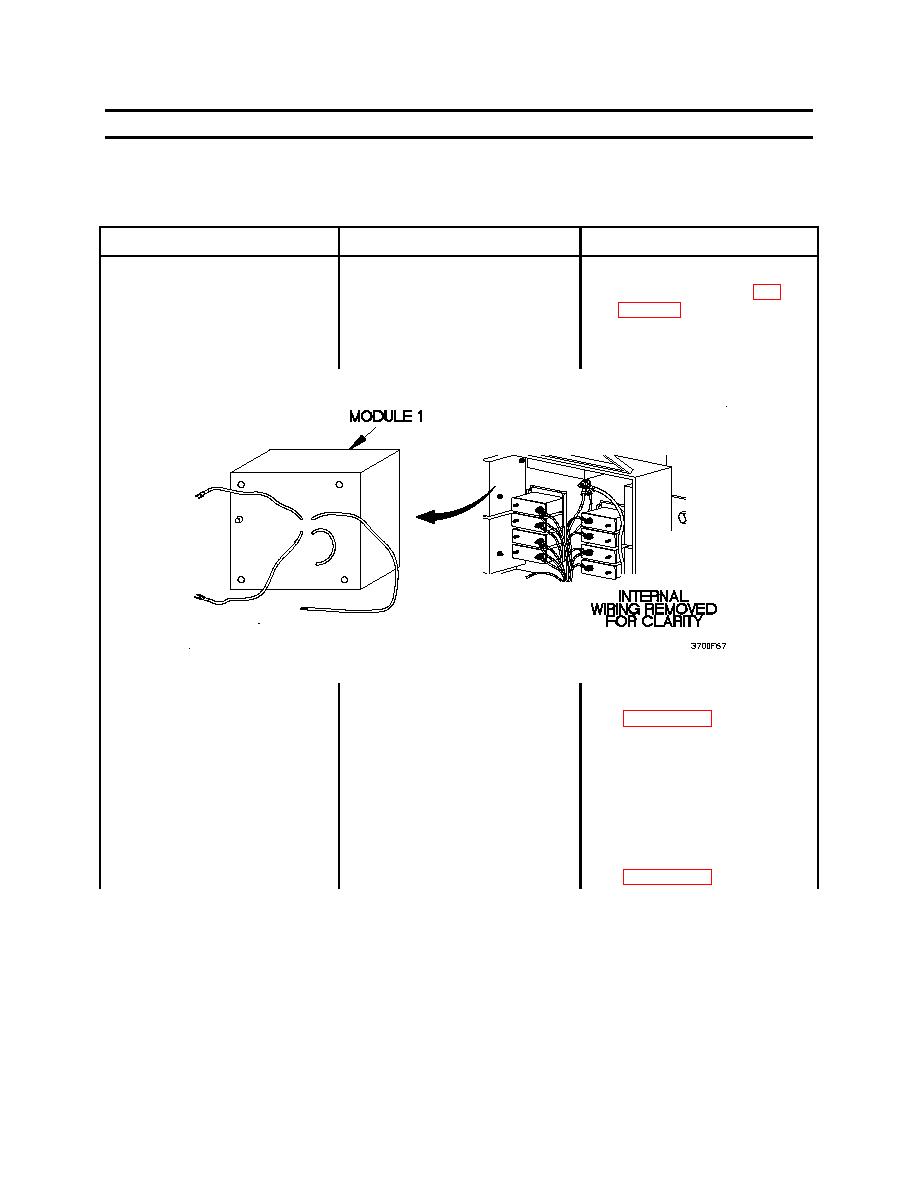

Table 1. Electrical System Troubleshooting Procedures - Continued
MALFUNCTION
TEST OR INSPECTION
CORRECTIVE ACTION
10. LEFT TAILLIGHT DOES NOT
3.
Check to see if module 1 LED
1.
Connect 24 vdc
ILLUMINATE - CONTINUED
illuminates.
intervehicular cable (WP
2.
Position towing vehicle main
light switch to SER DRIVE.
3.
Open voltage converter box
4.
Check to see if module 1
LED illuminates.
5.
Position towing vehicle main
light switch to OFF.
6.
If module 1 LED does not
illuminate, replace module 1
0036 00-66
