TM 9-2330-394-13&P
ELECTRICAL CABLE ASSEMBLY REPLACEMENT - Continued
0051 00
REMOVAL - Continued
NOTE

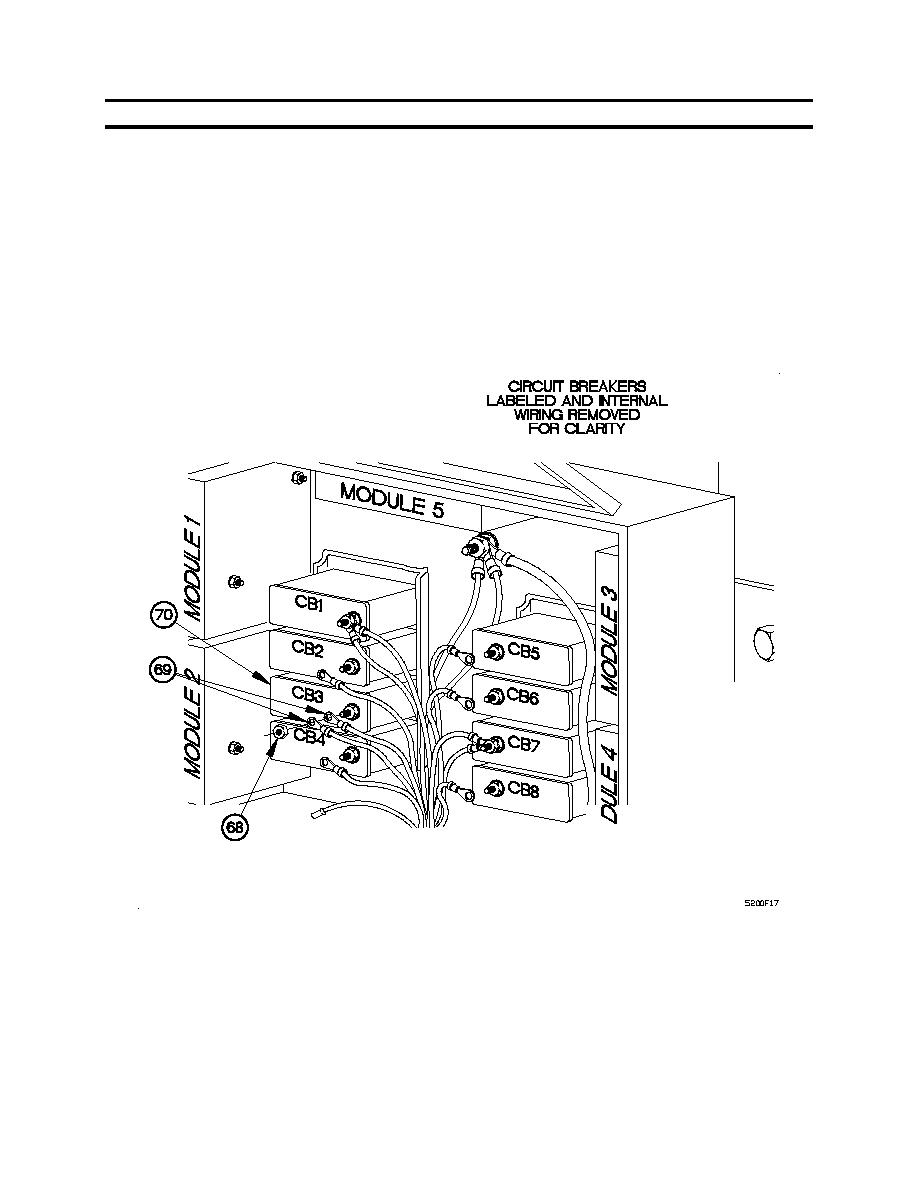

Wires are removed from CB1, CB3 and CB7 the same way. CB3 shown.
25. Remove nut (68) and two wiring harness wires (69) from circuit breaker (70).
26. Perform step (25) on remaining circuit breakers.
0051 00-11
