TM 9-2330-394-13&P
BRAKE PLUNGER ASSEMBLY REPLACEMENT/REPAIR - Continued
0056 00

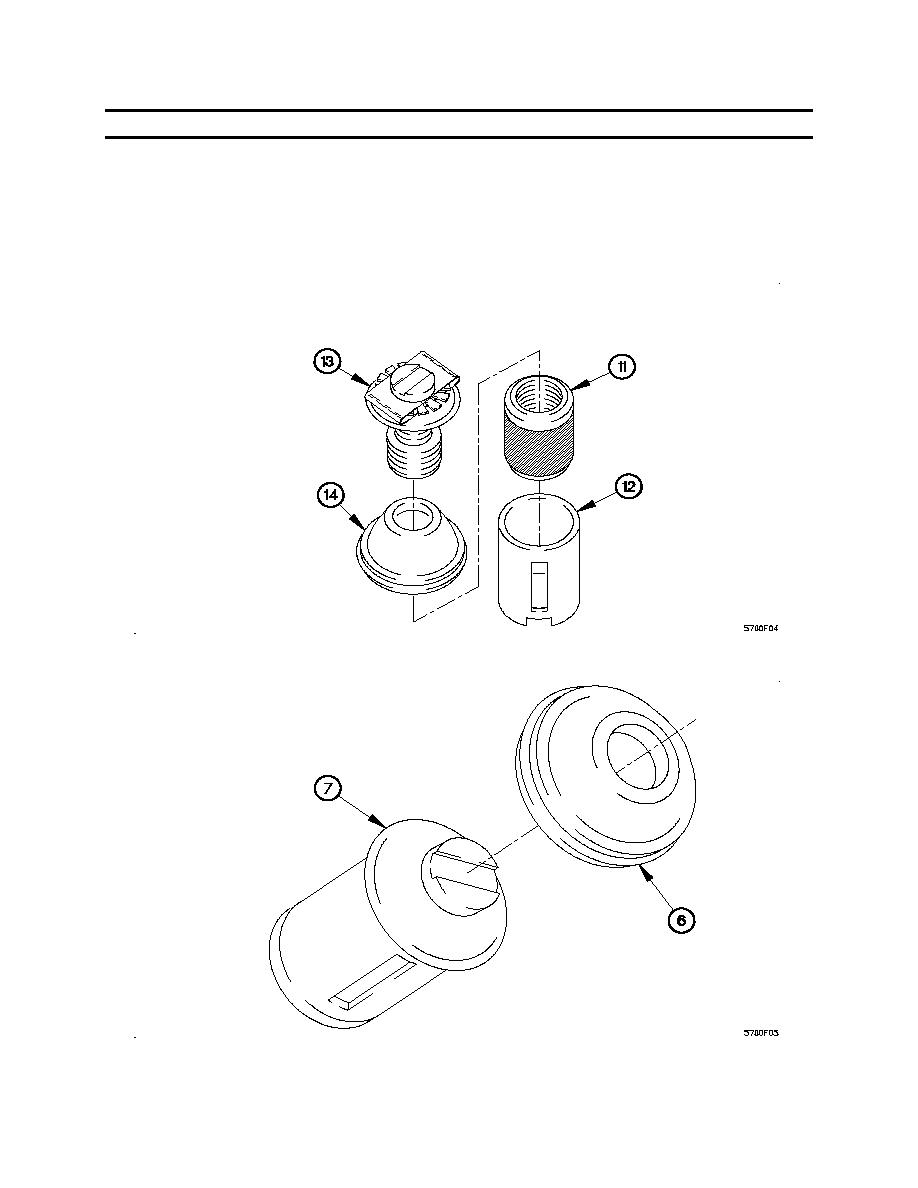

DISASSEMBLY
1.
Remove adjusting sleeve (11) from adjusting plunger (12).
2.
Remove adjusting screw (13) from adjusting sleeve (11).
3.
Remove seal (14) from adjusting screw (13).
4.
Remove seal (6) from anchor plunger (7).
0056 00-4
