TM 9-2330-394-13&P
WHEEL REPAIR - Continued
0079 00
DISASSEMBLY - Continued
7.
Stand tire (3) on end with beadlock bolts (6) facing up.
8.
Push down on beadlock (7) to gain access to four self-locking nuts (8).
9.
Remove four self-locking nuts (8), bolts (6), and two clips (9) from beadlock (7). Discard self-
locking nuts.
10. Remove beadlock (7) from tire (3).
ASSEMBLY
WARNING
Wheel and tire assembly weighs approximately 350 lbs (159 kgs). Use
caution when handling tire. Failure to comply may result in injury to
personnel.
NOTE
Steps (1) through (6) require the aid of an assistant.
1.

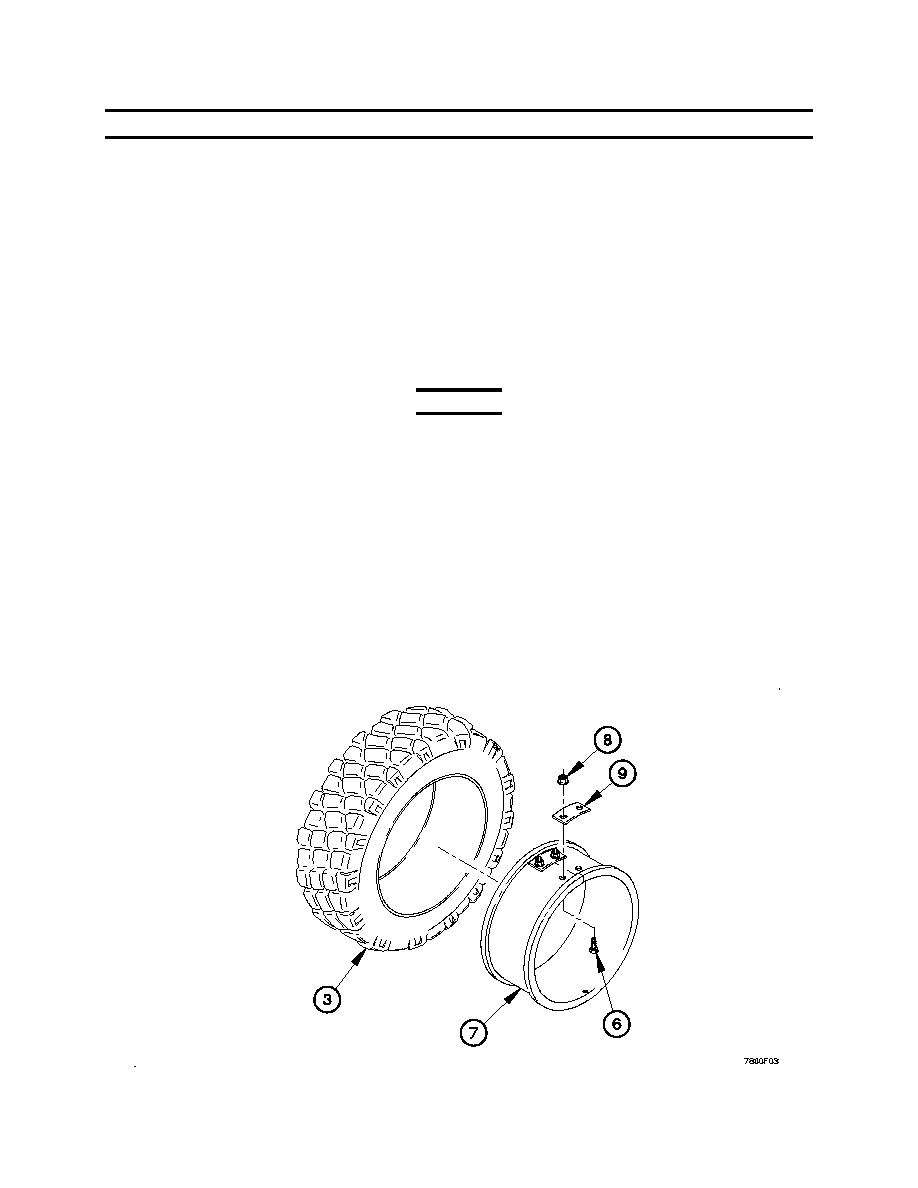

Open tire (3) and install beadlock (7) inside tire (3).
2.
Install two clips (9) in beadlock (7) with four screws (6) and self-locking nuts (8).
3.
Center beadlock (7) in tire (3).
0079 00-4
