LANDING GEAR AND WINCH REPLACEMENT/REPAIR - Continued
0104 00
LANDING GEAR REMOVAL - Continued
WARNING
Landing gear weighs approximately 80 lbs (36 kgs). Attach a suitable
lifting device prior to removal. Failure to comply may result in injury to
personnel or damage to equipment.
NOTE
Left and right sides of landing gear are removed the same way. Left side shown.

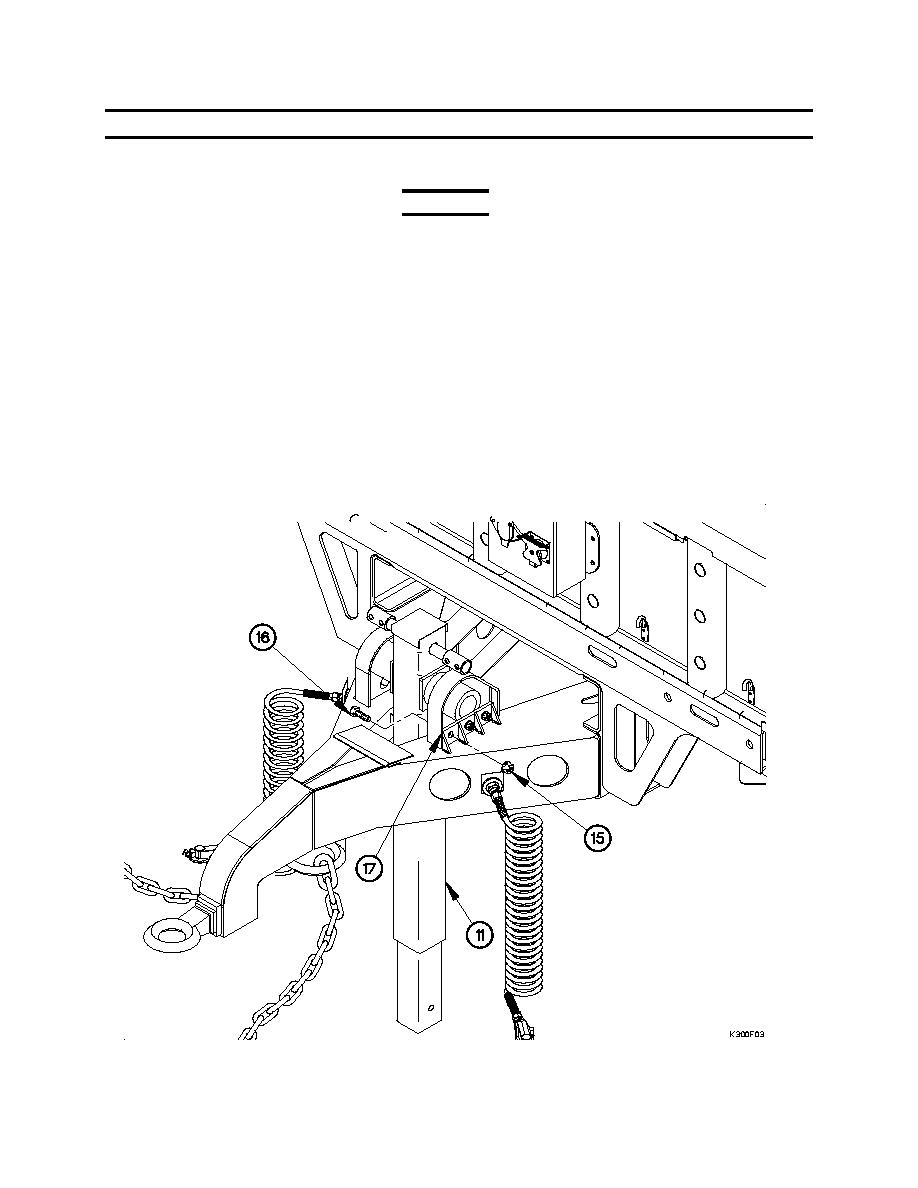

11. Remove three self-locking nuts (15) and bolts (16) from mount (17). Discard self-locking nuts.
12. Perform step (11) on right side of trailer.
13. Remove mounts (17) and landing gear (11) from trailer.
