SHOCK MOUNT CROSSMEMBER REPLACEMENT - Continued
0107 00
REAR SHOCK MOUNT CROSSMEMBER REMOVAL, MTVT - Continued
CAUTION
When removing bolts, continuous removal of collars is mandatory. Failure to comply will
result in seizing of collar to bolt.
NOTE
Steps (11) through (13) require the aid of an assistant.

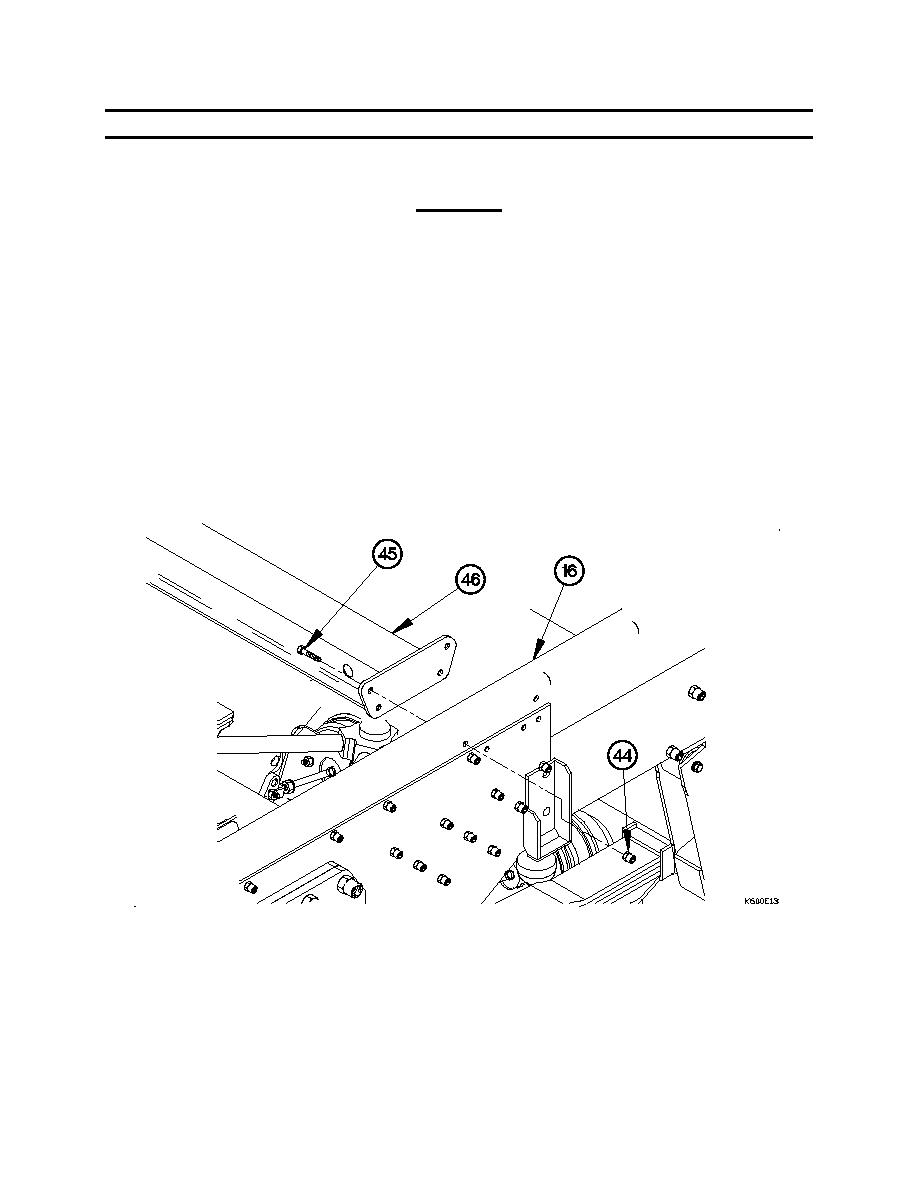

11. Remove three collars (44) and bolts (45) from rear shock mount crossmember (46). Discard collars and
bolts.
12. Perform step (11) on left side of rear shock mount crossmember (46).
13. Remove rear shock mount crossmember (46) from frame rails (16).
0107 00-12
