TM 9-2350-277-10
BREAK/JOIN T150 TRACK -- Continued
0092 01
4.

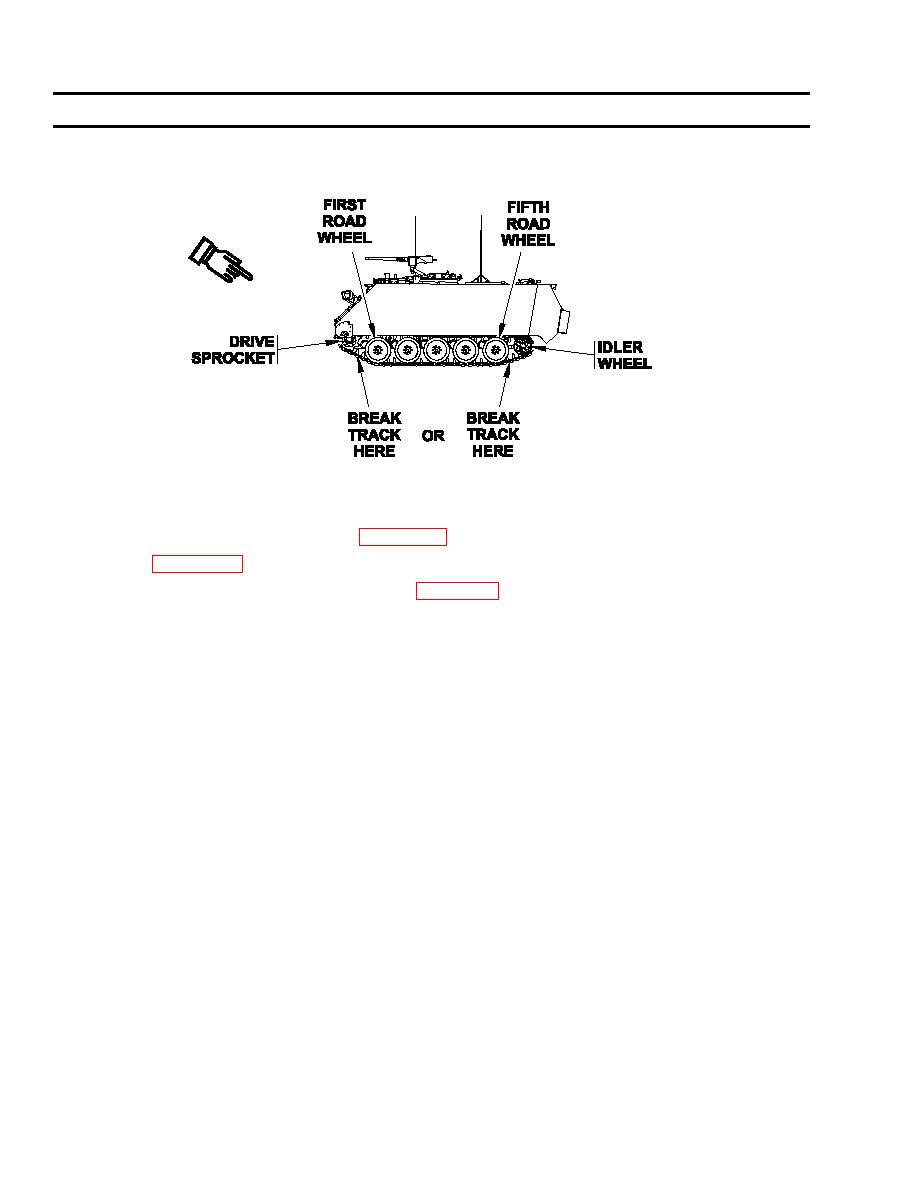

Drive carrier slowly so the track pin to be removed is about halfway between the first road wheel and the sprocket wheel
or halfway between the idler wheel and fifth road wheel. Do not use steering wheel or abruptly stop carrier.
NOTE
Block track with suitable object.
5.
6.
7.
Release track tension all the way on track to be broken (WP 0091 01).
0092 01-2
Change 4
