TM 9-4910-579-14&P
LAPPING THE FINISHING TOOL
On the finishing tool, Figure - 8 -, portion 2 is the part that produces the finish cut. The condition of
portion 2, therefore, determines the final finish. The finishing tool bit is lapped only in the large jig
and in positions 4F, 1, 2, and 3F.
1- The first operation is to lap the tool face, Figure - 8 -, with the tool in position 4F of the large
lapping jig. Lap only until you have removed all built up material from the face of the tool.
2- Then place the tool holder in the large lapping jig as shown in Figure - 7 - and set the swivel
casting which holds the tool to position 1 as illustrated. Lap in this position until portion 1,
3- Shift the swivel casting to position 2 and lap portion 2 until it is smooth.
4- Then shift to position 3F and lap portion 3F until 2 has the proper width. This should be from
0.020" to 0.050", depending on the bore size, as explained on Page 14 under "Most Important
Part Of The Tool".
5- Lap the finishing tool as outlined above, AFTER EVERY HOLE.
To fully understand the purpose of each lapping operation, carefully study the enlarged views of the
tool, at the same time holding one of the tools in your hand in position shown in these views.

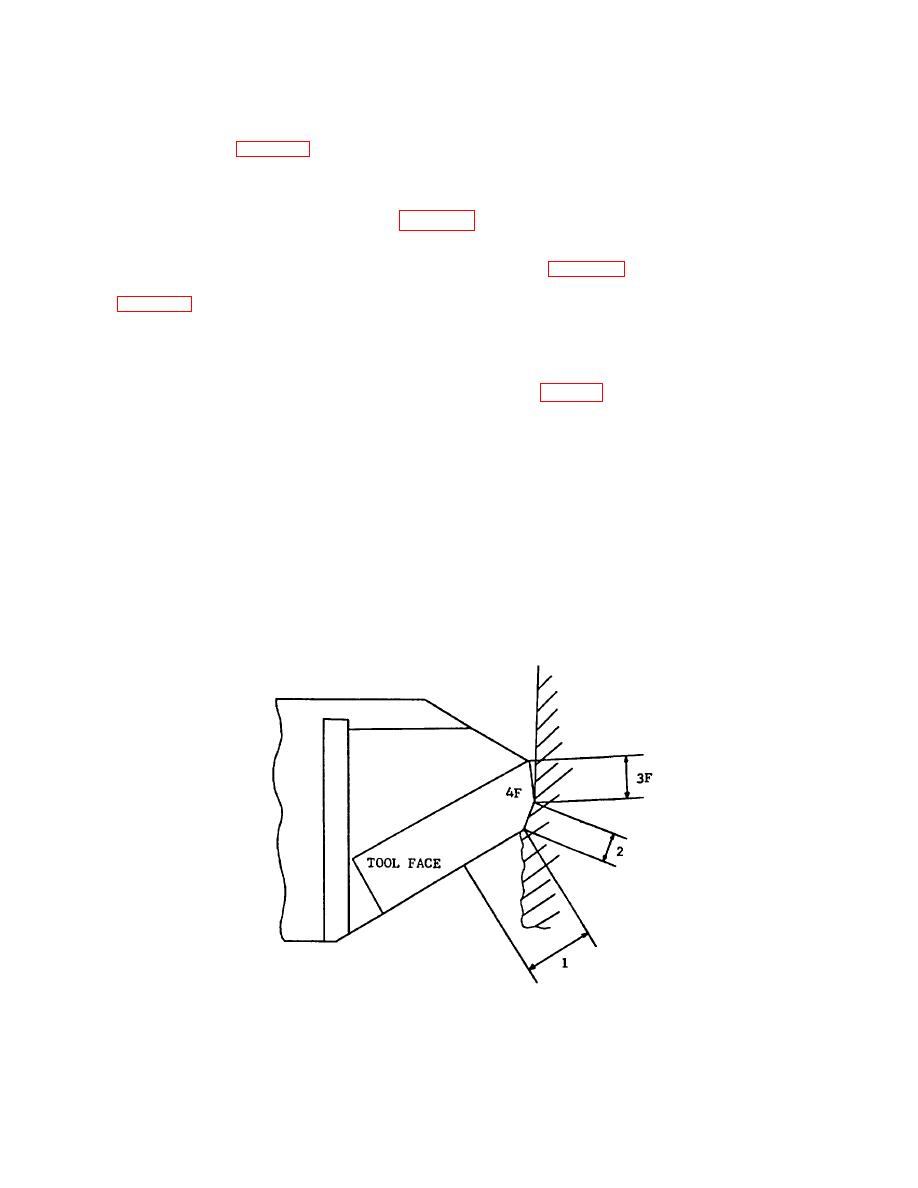

FINISH BORED CYLINDER WALL
FIGURE 8
FINISH BORING TOOL BIT IN
CUTTING POSITION
- 13 -
