TM 9-4910-703-14&P

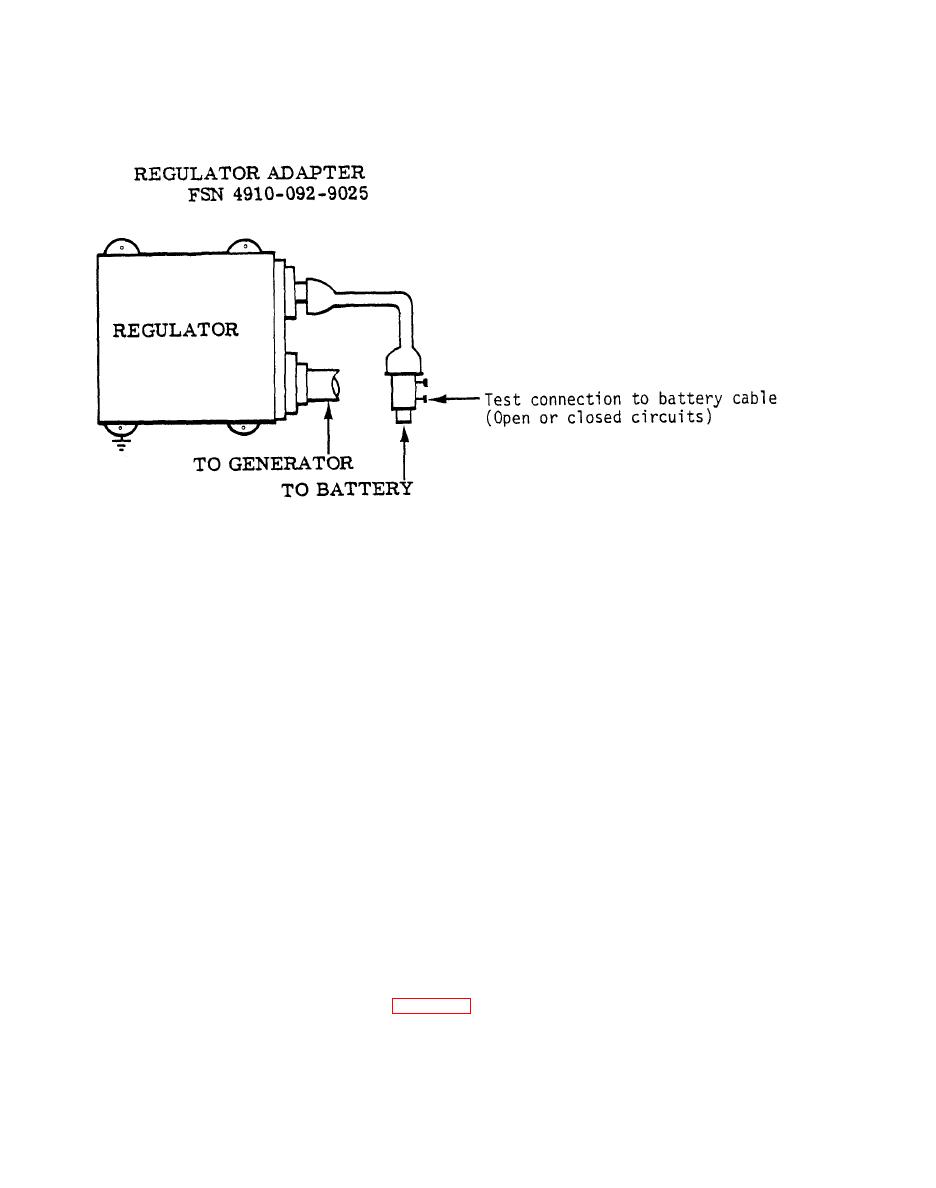

Make tests required for charging circuit by connecting to generator and/or
regulator adapters as indicated in instruction manual for specific test unit
being used.
After tests are made and adapters removed, make sure connections
are secure and waterproof.
IGNITION CIRCUIT TESTS
DISTRIBUTOR PRIMARY ADAPTER:
Remove plug in distributor cover and screw distributor primary adapter
1.
securely into exposed hole.
2.
connect accordingly.
Follow test sequence as out lined in vehicle service manual.
3.
2
