Table 6. Media Filter Valves (refer to figure 6)
Key
Control/Indicator
Function
1
RO-V-10 Media Filter
This valve allows the operator to purge the filtered contents of the
Backflush Discharge Valve
media filter overboard if it becomes clogged.
2
RO-V-3 Media Filter
This valve allows filtered raw water to exit the media filter. This valve
Discharge Valve
is OPEN during normal ROWPU operation.
3
RO-V-2 Media Filter
This valve allows raw water to enter the media filter.
Supply Valve
4
RO-V-4 Media Filter
This valve permits the operator to bypass the media filter during
Bypass Valve
ROWPU operation.
440V POWER PANEL NO. 5 CIRCUIT BREAKERS
1
2

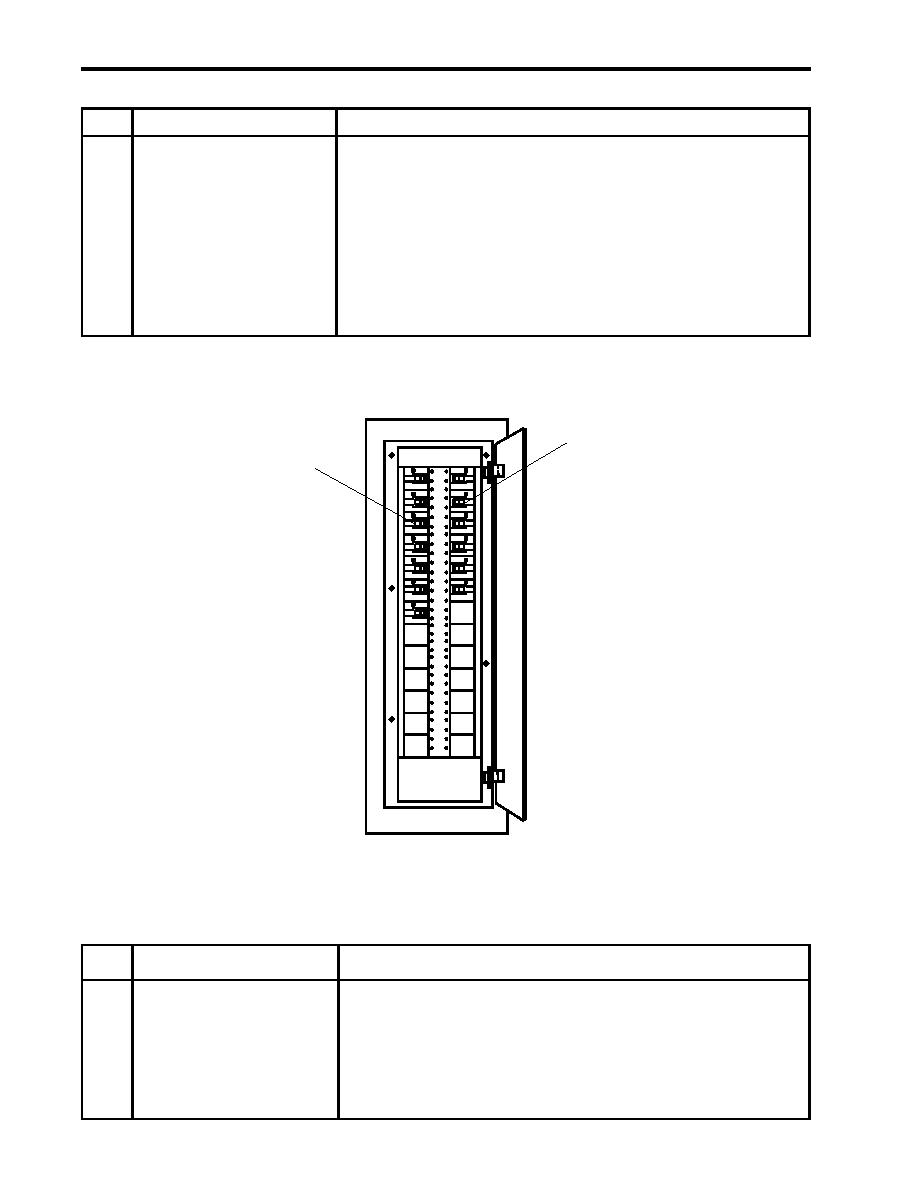

Figure 7. 440V Power Panel No. 5
Table 7. 440V Power Panel No. 5 (refer to figure 7)
Key
Control/Indicator
Function
1
REVERSE OSMOSIS
This circuit breaker provides 440 Vac to ROWPU 1.
WATER MAKER No. 1
Circuit Breaker
2
REVERSE OSMOSIS
This circuit breaker provides 440 Vac to ROWPU 2.
WATER MAKER No. 2
Circuit Breaker
