TM 9-2320-269-10
LOCATION AND DESCRIPTION OF MAJOR COMPONENTS - CONTINUED
DERRICK - EXTERIOR - CONTINUED

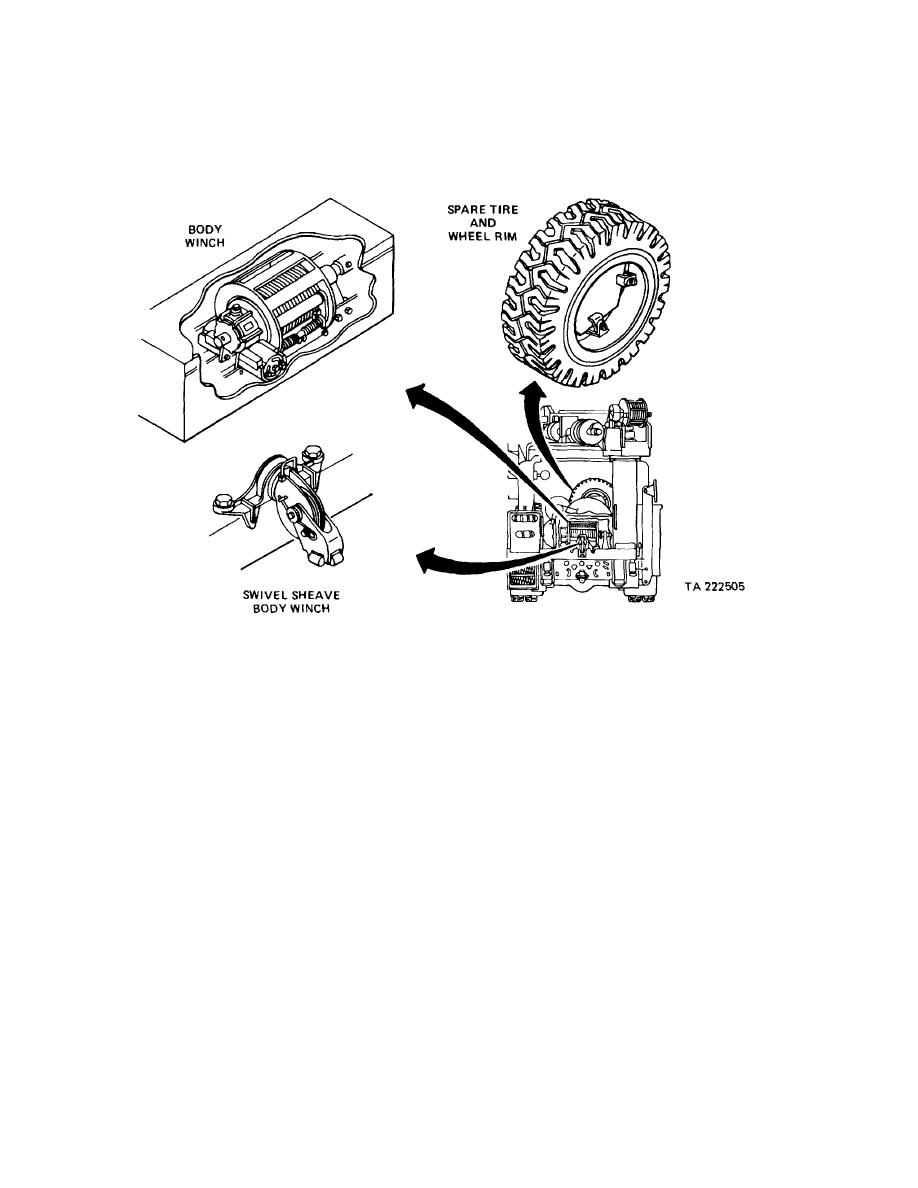

Body Winch
Mounted on and bolted to the derrick sub-frame at the front section of the maintenance body. The hydraulic powered
winch is controlled from right rear side of the M876 truck, by individual body winch controls.
Spare Tire and Wheel Rim
Fastened to carrier, and carrier is bolted to the forward bulkhead of the maintenance body, behind the body winch. Spare
tire and wheel rim is removed and replaced in maintenance body with aid of turret winch.
Swivel Sheave Body Winch
Mounted and bolted to rear maintenance body floor. Guides body winch cable.
TA 222505
1-28
