TM 9-2320-269-10

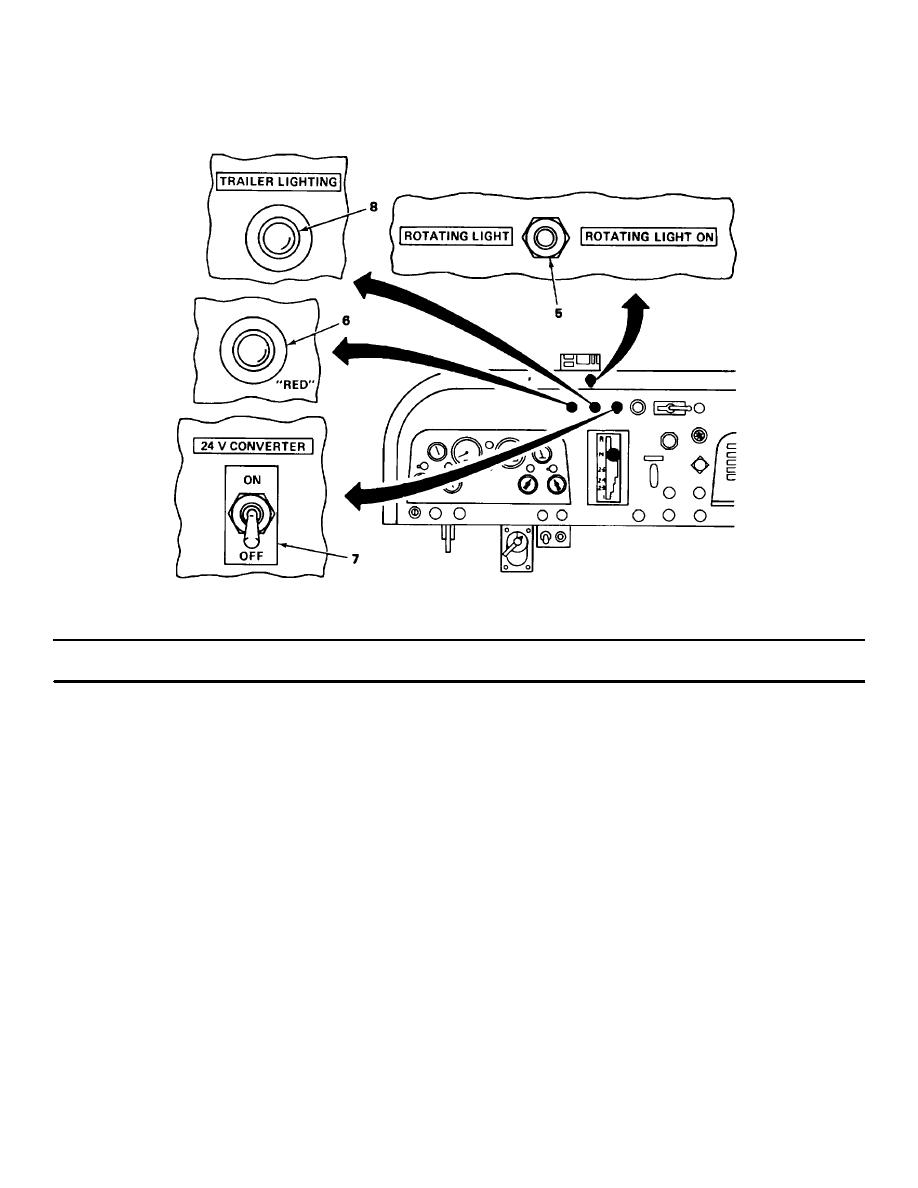

INSTRUMENT PANEL CONTROLS - CONTINUED
KEY
CONTROL OR INDICATOR
FUNCTION/USE
5
SWITCH - ROTATING WARNING
Pull out for ON, and push in for OFF positions. Works with key switch
in
BEACON LIGHT
ON or OFF position.
6
INDICATOR LIGHT - ROTATING
Red light comes ON when switch is pulled. Indicates rotating warning
WARNING BEACON
beacon light is working.
7
SWITCH - 24 V CONVERTER
Push up for ON and down for OFF. Provides electrical power to
trailers equipped with 24 volt electric system.
8
INDICATOR LIGHT - 24 V
Red light comes ON when switch is pushed to ON position. Indicates
CONVERTER
towed trailer is getting electric power.
TA 222518
2-9
