TM 9-2320-279-10-2
M984E1 General Operating Procedures (Cont)
NOTE
Left side shown.
q
Brake line bracket is located on top rear of axle.
q

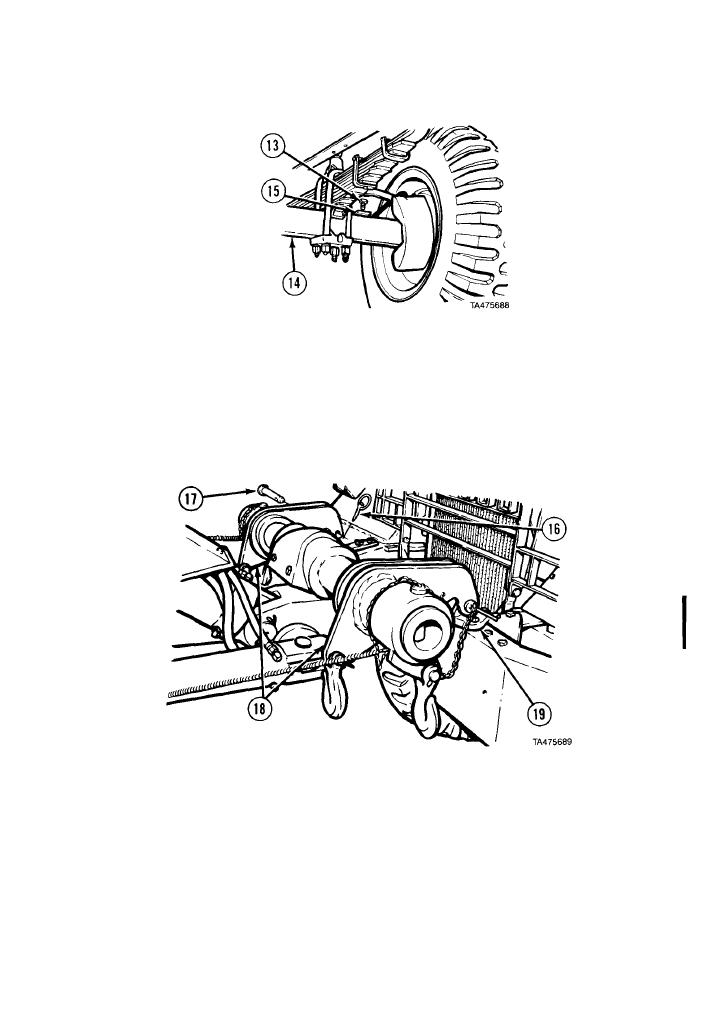

(11) Remove screw (13) from axle (14).
(12) Install brake line bracket (15) with screw (13).
(13) Repeat step (12) for other side of disabled vehicle.
NOTE
Use retrieval controls to position crosstube to relieve
tension from adapters.
(14) Remove two quick pins (16) and pins (17) from adapters (18).
(15) Remove two adapters (18) from tow eyes (19) on disabled vehicle.
(16) Install two pins (17) in adapters (18).
(17) Install two quick pins (16) in pins (17).
2-213
