TM 9-2320-366-10-2
2-67. EMERGENCY PROCEDURES (CONT)
NOTE
Position boom so that cable and hook assembly are on driver's side of
vehicle and turntable bearing pin holes are aligned.

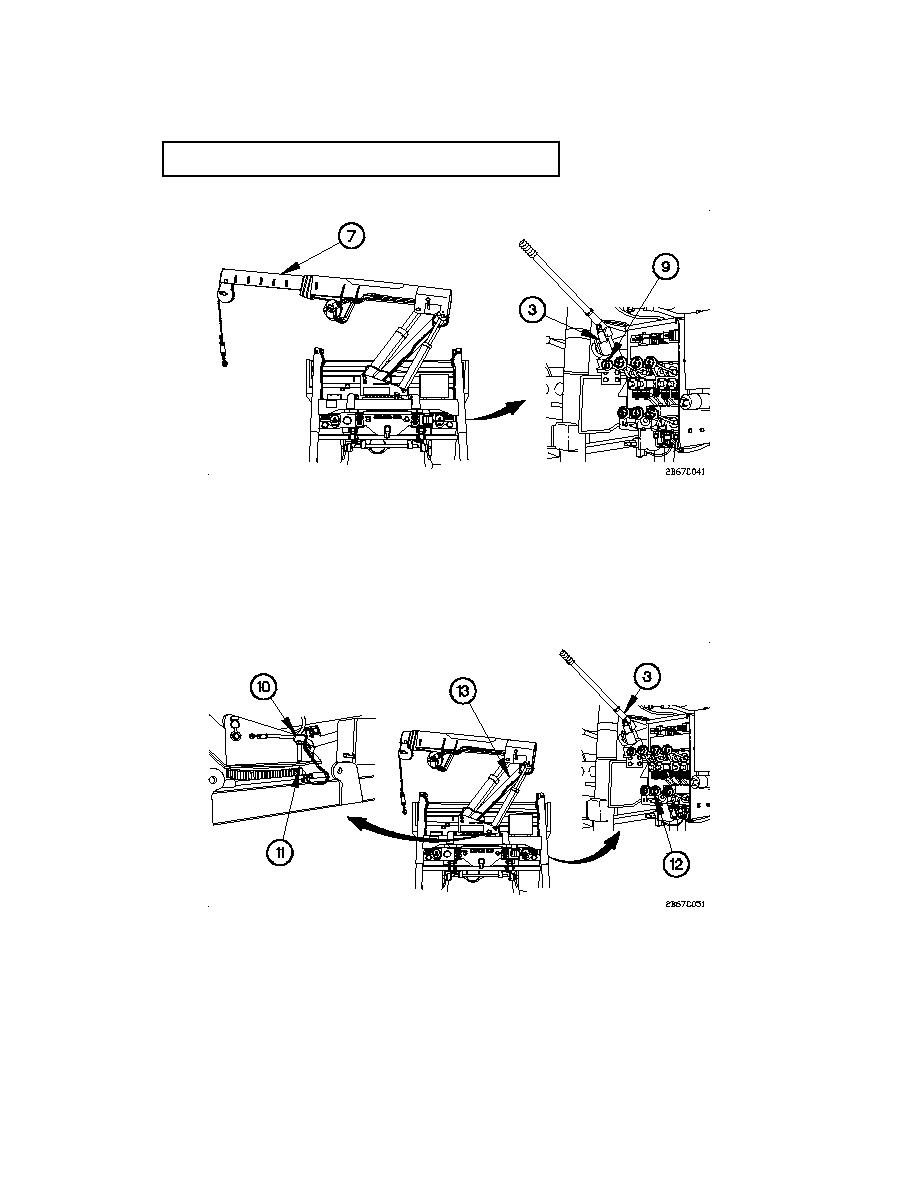

(8) Place SWING lever (9) to CW or to CCW position as required and operate hydraulic
pump (3) to rotate boom (7).
(9) Install pin (10) in turntable bearing (11).
(10) Place MAST lever (12) in DOWN position and operate hydraulic pump (3) to lower
mast (13).
2-796
