TM 9-2350-222-10-2
DRIVE THE VEHICLE (OPERATE PERISCOPES) - Continued

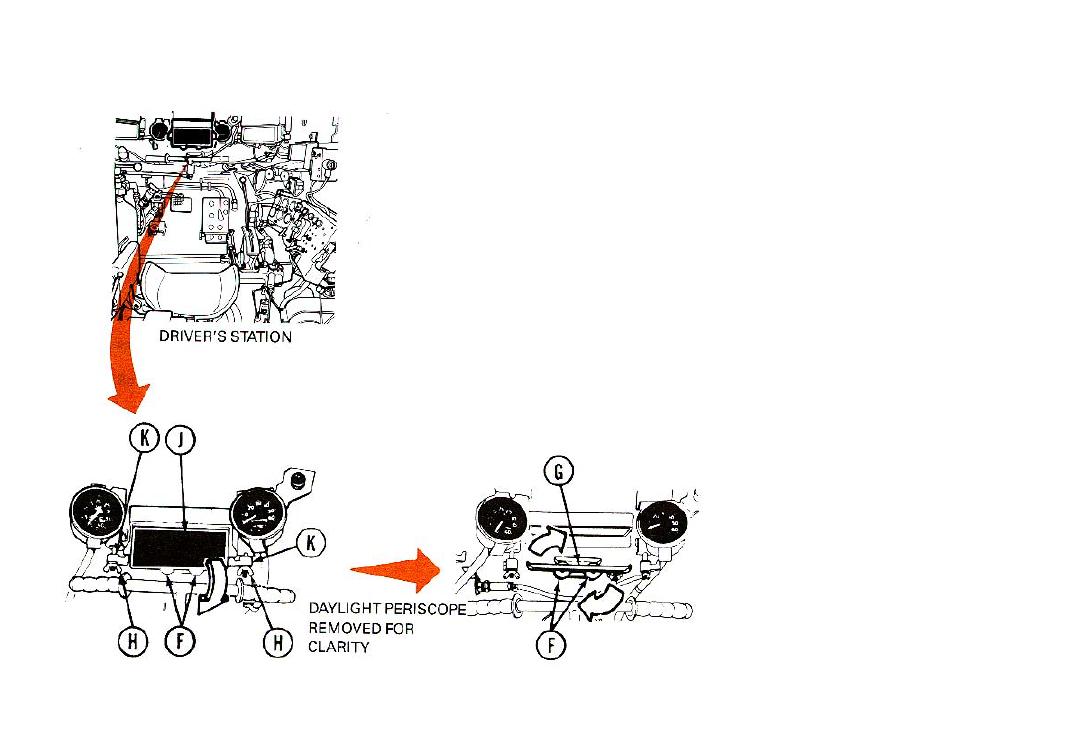

To Lower M27 Periscope:
1. Turn knurled nuts (F) in direction shown to tighten support bracket
(G).
2. Loosen wing nuts (H).
3. Support daylight periscope (J) with hand.
4. Push retainers (K) away from daylight periscope (J).
5. Lower daylight periscope (J) onto support bracket (G
2-198
