TM 9-2350-222-10-2
PERFORM SMOKE SCREENING (TURN ON SMOKE GENERATOR) - Continued
CAUTION
To prevent damage to solenoid valves, smoke generator should not be operated longer than 15 minutes. When ON
cycle is 15 minutes, OFF cycle should be 15 minutes or more. ON/OFF cycle is not necessary if operated less than 15
minutes.
NOTE
Do not operate smoke generator if fuel supply is low.
2.

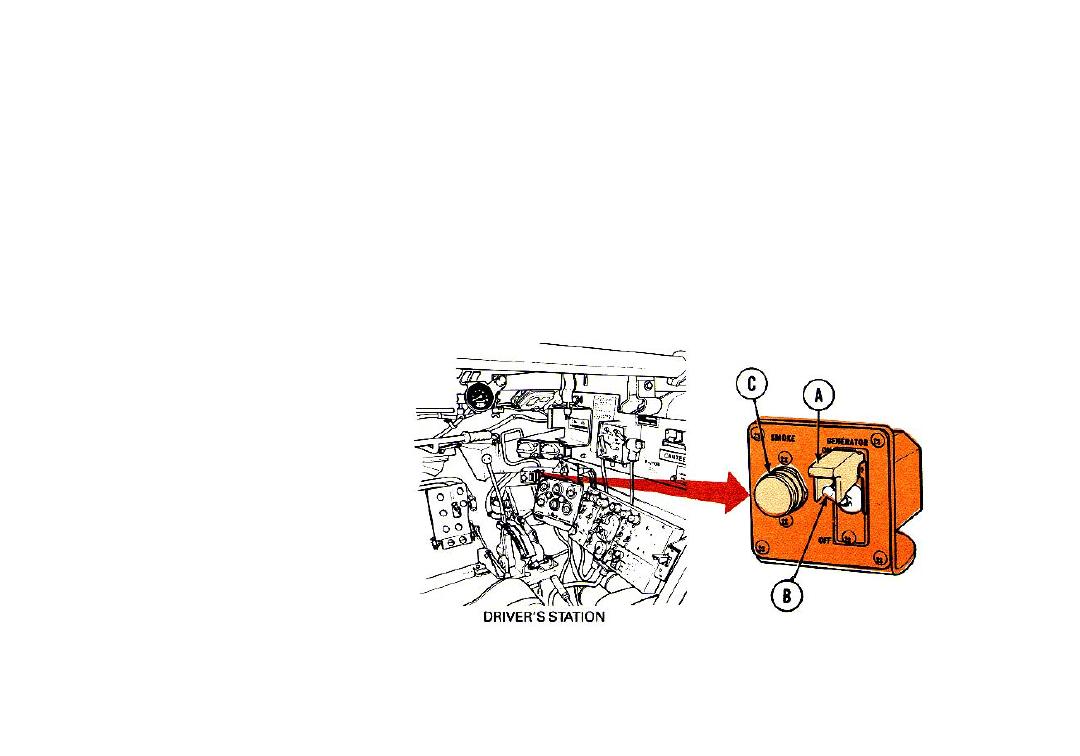

Lift cover (A).
3.
Set SMOKE GENERATOR switch (B)
to ON.
Lamp (C) will light.
4.
To make lamp brighter, rotate lamp
(C) 1/8 turn counterclockwise.
TA132660
2-521
