TM 9-2350-222-10-2
OPERATE UNDER UNUSUAL CONDITIONS (PERFORM DEEP WATER FORDING)- Continued
13.

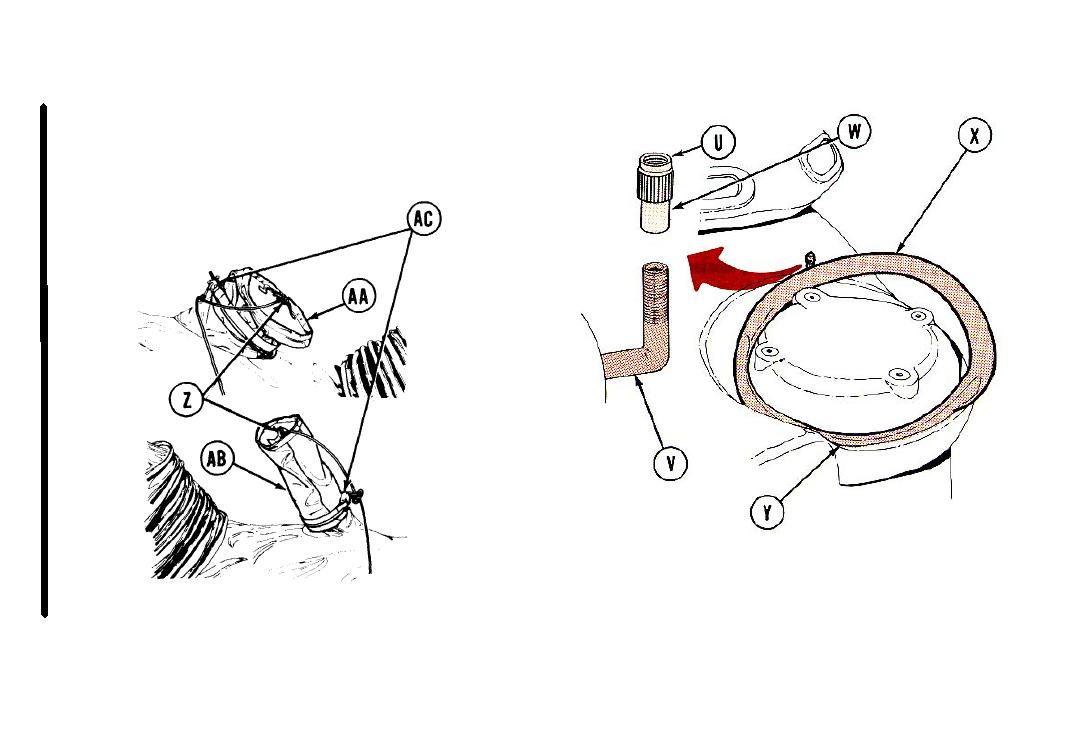

Remove valve stem cap (U). Replace on valve stem (V) deflater
end (W) down and deflate seal (X).
14.
Carefully stretch seal (X) and pull up to remove from blower air
intake (Y). (You may have to use screw-driver.)
15.
Untie release cords (Z) from telescope port cover (AA), machine
gun port cover (AB), and quick-release clamps (AC).
16.
Remove both release clamps (AC) with cover (AA) and (AB).
TA252921
Change 1 2-668.47
