TM 9-2350-222-10-3
MAINTAIN 7.62-MM MACHINE GUN (REPLACE BARREL ASSEMBLY -
M73) - Continued
To Get Necessary Equipment:

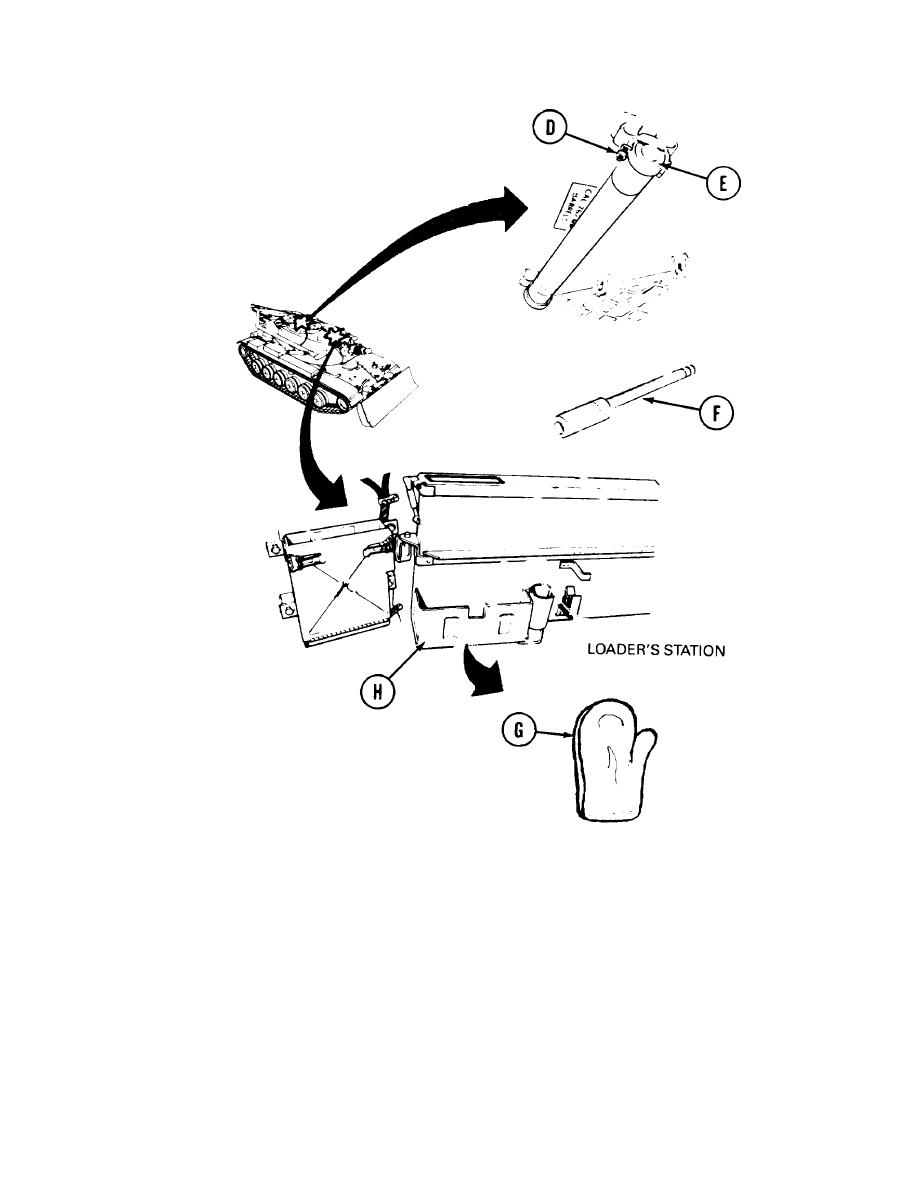

1. Loosen nut(D) and remove tube
(E). Take spare barrel (F) from
tube (E).
CAUTION
7.62-mm machine gun is very
hot after firing. Use asbestos
mittens if necessary and han-
dle with care.
2. If M73 7.62-mm machine gun is hot from firing, get asbestos
mittens (G) from rack (H) on caliber 7.62-mm ammunition box.
TA132991
3-161
