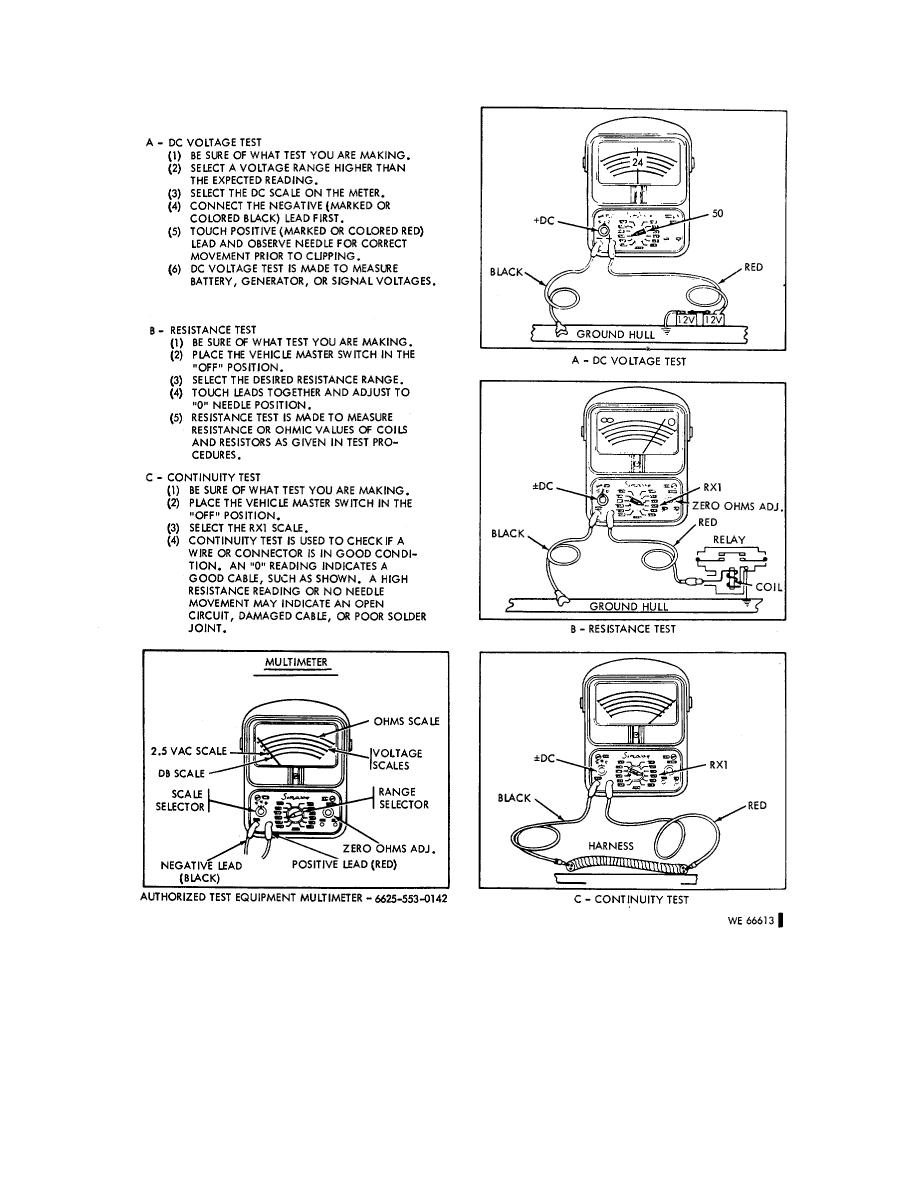

Figure 8-2. Troubleshooting hull and power plant electrical system with multimeter

TABLE 8-5. OHMMETER METHOD OF ELECTRICAL TROUBLESHOOTING - CONTINUED

Figure 8-3. Troubleshooting-master relay and battery power circuits

TM-9-2350-230-12 Armored Reconnaissance/Airborne Assault Vehicle Full-Tracked 152 MM M551 2350-873 5408 Manual Page Navigation
272

C9, TM 9-2350-230-12

Figure 8-2. Troubleshooting hull and power plant electrical system with multimeter

8-47
