TM 9-3418-200-14 & P

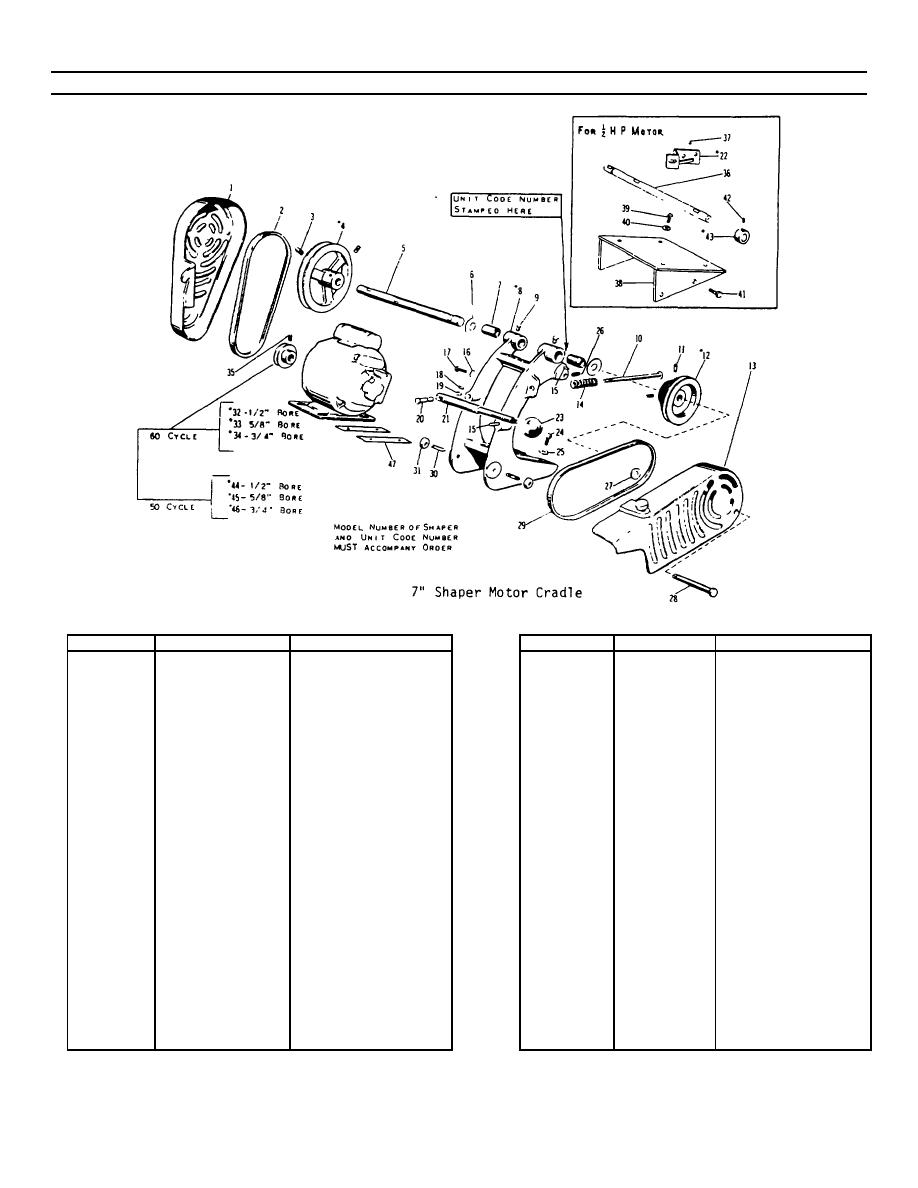

PARTS LIST
ITEM NO.
PART NO.
DESCRIPTION
ITEM NO.
PART NO.
DESCRIPTION
1
PT5087S1
Motor Pulley Guard
26
121 x 104
Setscrew
2
CE4L280
V Belt
27
PT4985S1
Washer
3
120 x 106
Setscrew
28
PT5098S3
Guard Stud
4
*AS5088S1
Countershaft Pulley ( 3 )
29
CE4L290
V Belt
5
PT5089S2
Countershaft, 1/3 H.P.
30
PT704DP1
Setscrew
6
PT5108S1
Countershaft Washer
31
138 x 27
Hex. Nut
7
PT4997S1
Bushing
..................
Shaper Electric Motor
8
*AS5086S3
Motor Cradle ( 7 - 9 -
32
*AS5400S1
Motor Pulley ( 35 )
15 - 18)
33
*AS5401S1
Motor Pulley ( 35 )
9
155 x 20
Gits Oiler
34
*AS5402S1
Motor Pulley ( 35 )
10
PT4990S1
Cradle Tension Bolt
35
120 x 105
Setscrew
11
120 x 108
Setscrew
36
PT4983S2
Countershaft, 1/2 H P
12
*AS5010S1
Drive Pulley ( 11 )
37
160 x 236
Pin
13
PA5097S2
Drive Pulley Guard
38
PA4993S1
Motor Base Adapter,
14
PT4988S1
Cradle Tension Spring
1/2 H P
15
160 x 90
Straight Pin
39
112 x 108
Capscrew
16
161 x 12
Washer
40
161 x 12
Washer
17
112 x 116
Capscrew
41
112 x 110
Capscrew
18
PT1803
Straight Pin
42
120 x 5
Screw
19
120 x 5
Setscrew
43
*AS4982S1
Collar ( 42)
20
PT4987S1
Pin
44
*AS4979S1
Motor Pulley ( 35 )
21
PT4989S2
Cradle Adjusting Lever
45
*AS4980S1
Motor Pulley ( 35 )
22
*AS4992S2
Bracket ( 37)
46
*AS4981S1
Motor Pulley ( 15 )
23
PT406K&FHL
Bakelite Ball
47
PT4999S1
Motor Shim
24
112 x 112
Capscrew
25
161 x 12
Washer
34
