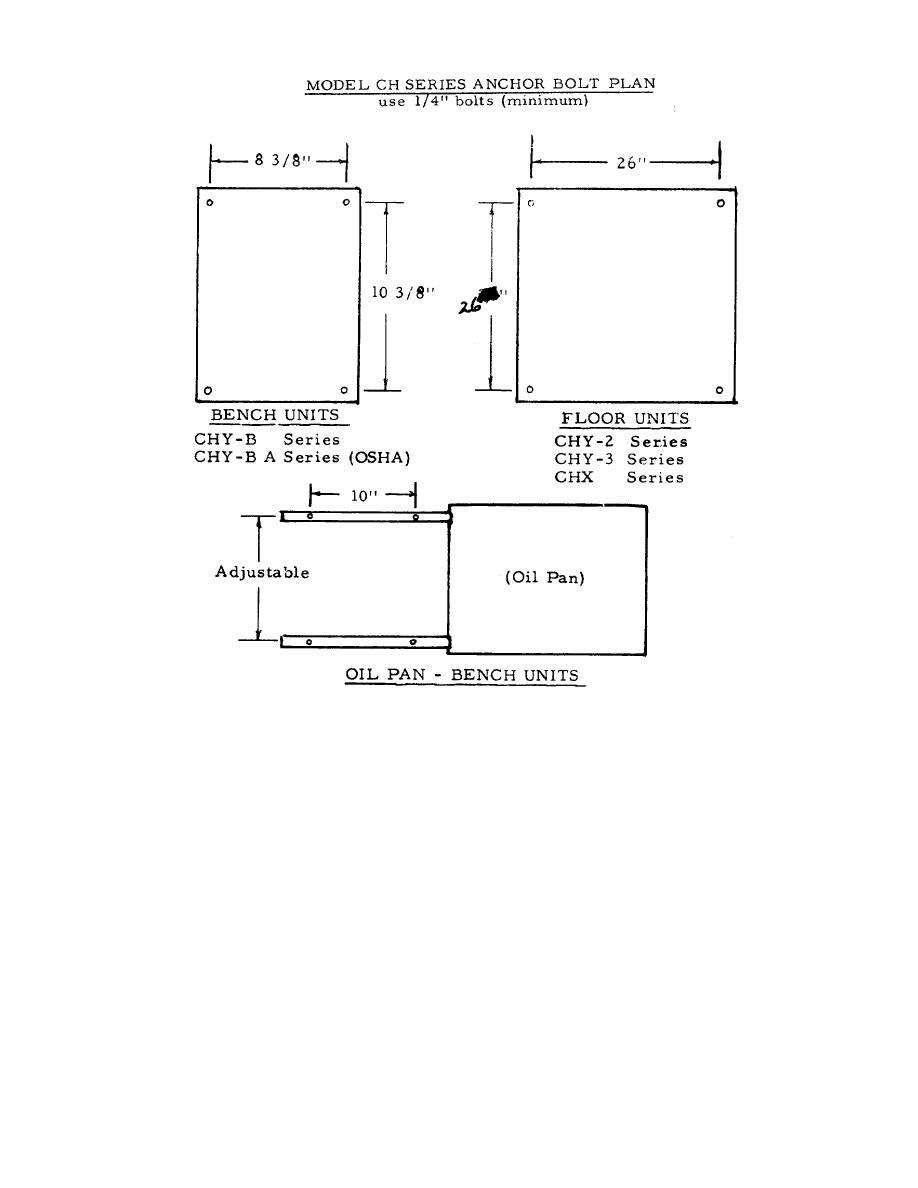

On CHY-B and CHYB A (OSHA) machines which are used primarily as
bench machines, the oil pan may be attached or built into the bench as
required. Hangers-have been provided which may be clamped to the head
and the bench on the left-hand side or may be adjusted in any manner to
suit the conditions or the requirements of the operator. Additional holes
may be drilled in the hangers should it be necessary to do so.
Although it is generally not necessary to anchor the honing machine because of its rugged construction
and weight factor, at times it may be desirable to do so.
Whenever possible it is suggested preset bolts not be placed until delivery of the machine allows actual
bolt hole measurement to assure exact fit.
NOTE: To convert a bench unit to a pedestal mounted floor unit, order ADAPTER SET BASE
PEDESTAL PART NO. W115.
