21

ARMY TM 9-4120-380-14

NAVY EE-000-BA-MMA-010/7053-AC

AIR FORCE TO 35E9-136-21

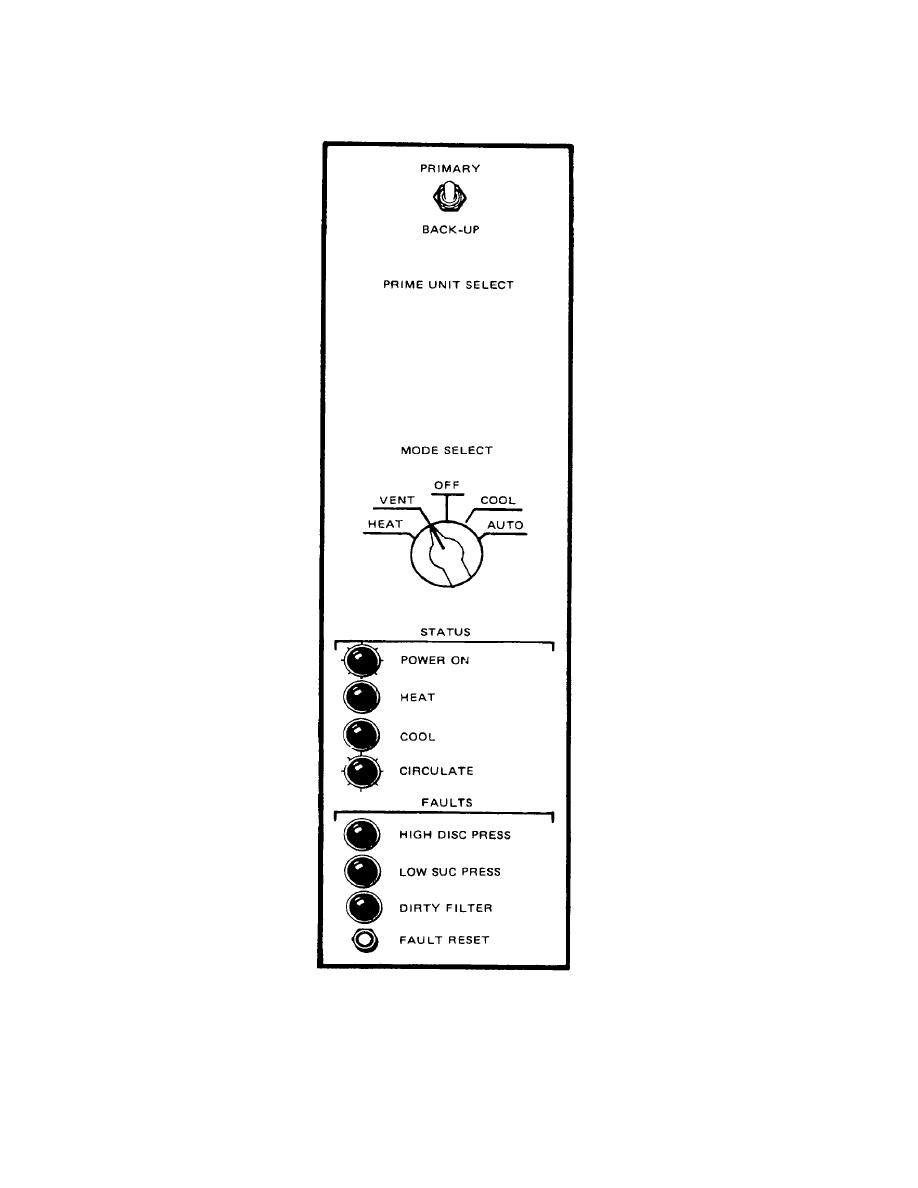

Figure 2-3. Ventilate Mode

(Settings and Indicators)

2-10
