Figure 4-39. DMS-G test adapter A14 schematic diagram
Figure 4-40. DMS-D card A1 schematic diagram (sheet 1 of 3)
TM-9-4935-481-14-2 Dragon Maintenance Set Manual
Page Navigation
53
54
55
56
57
58
59
60
61
62
63
TM9-4935-481-14-2

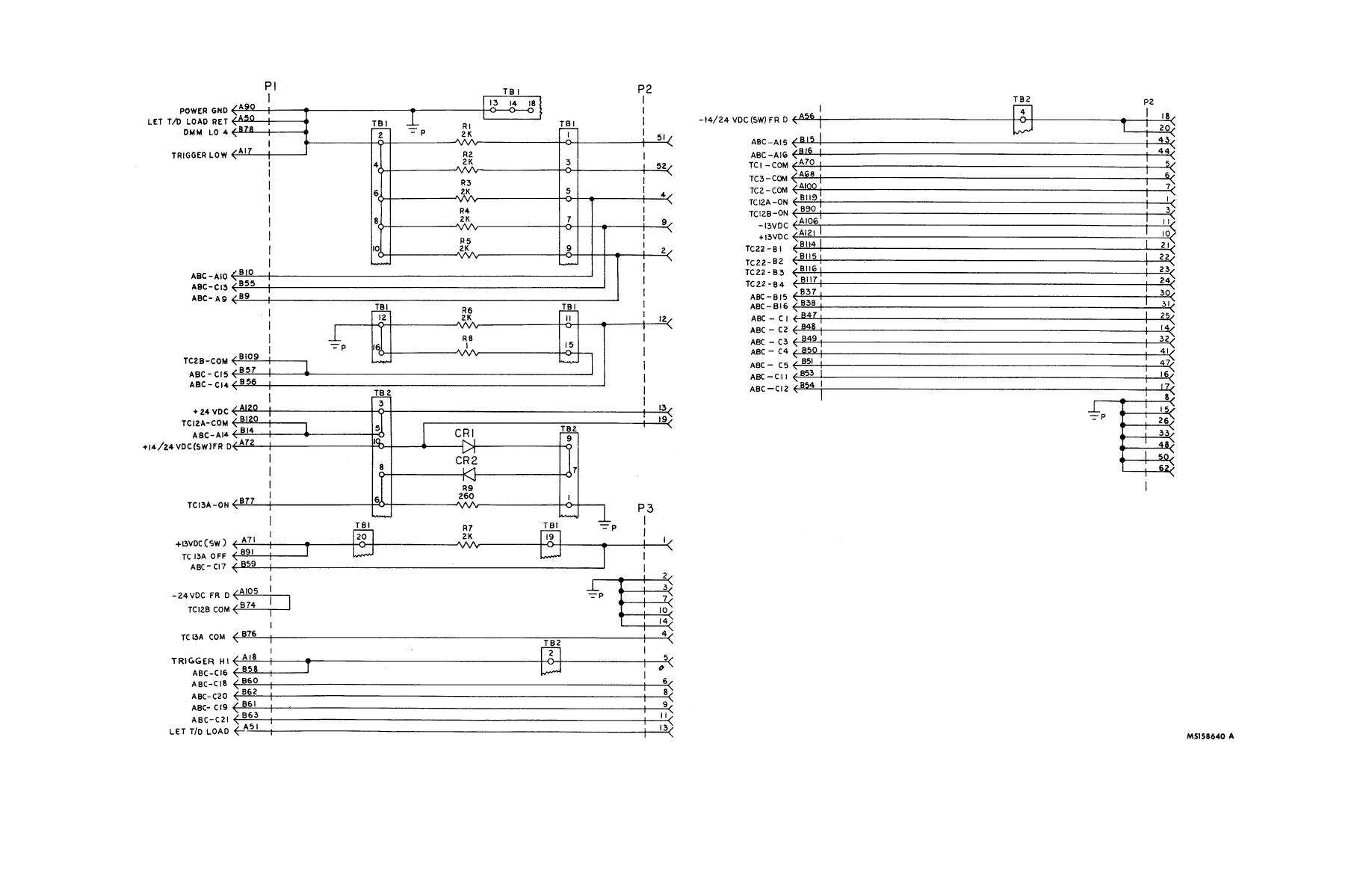

Figure
4-39A.
Test
adapter -
A15
(10275956)
schematic
diagram
4-108.1/(4-108.2
Blank)
