RESISTOR ASSEMBLY (cont)
REMOVAL OF RESISTOR
1.
Disconnect power source.
2.
Remove ten screws (1) and washers (2)
securing housing (3).
3.
Remove two nuts (4) and screws (5) securing
resistors (6) and (7).
4.
The two 7-ohm resistors (6) may be removed
individually. Disconnect and tag wires. Remove
resistors.
5.
The three
5.7-ohm
resistors
(7)
are
interconnected by jumper wires (9). Tag and
disconnect wires and remove resistors as a unit.

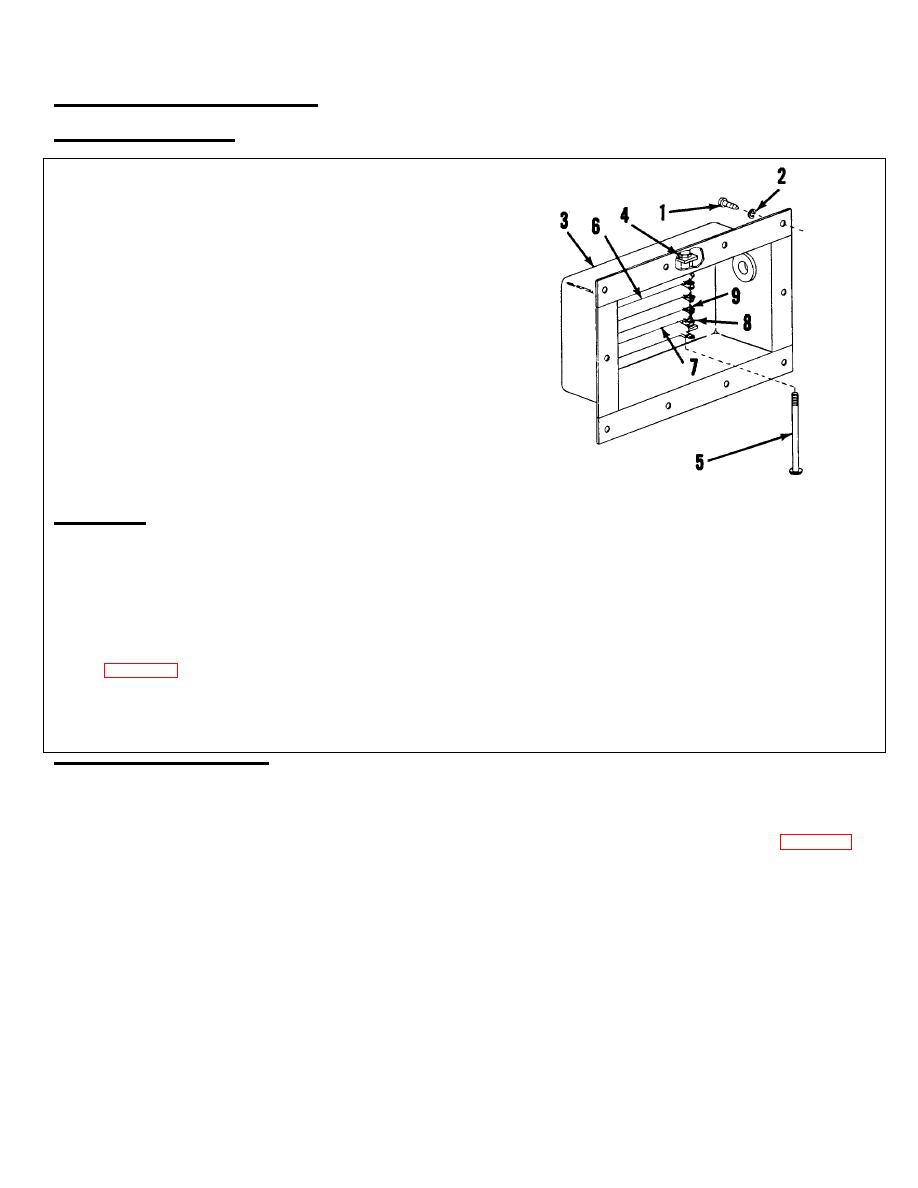

INSPECTION
1.
Screw
1.
Check resistor contact points (8)
2.
Washer
for cleanliness. Clean as required.
3.
Housing
4.
Nut
2.
5.
Screw
for rated ohms marked on front of
6.
7-ohm resistor
resistor (refer to wiring diagram,
7.
5.7-ohm resistor
8.
Contact point
9.
Jumper wire
3.
Replace cracked, chipped or
defective resistor.
INSTALLATION OF RESISTOR
1.
Replace 7-ohm resistor (6) by connecting disconnected wires and securing with screws (5) and nuts (4).
2.
Position 5.7-ohm resistors (7) and solder all jumper wire (9) connections.
3.
Connect all disconnected wires and secure in place with screws (5) and nuts (4).
4.
Using multimeter, check resistors for rated ohms marked on front of resistors (refer to wiring diagram, page 4-36).
5.
Position housing (3) and secure with ten screws (1) and washers (2).
