14-12. INTERVEHICULAR CABLE RECEPTACLE (cont)
REMOVAL OF 24-VOLT RECEPTACLE (cont)
5.
Mark and unsolder wires at rear of receptacle
1.
Wires
(4).
2.
Nut
6.
Remove rubber bushing (3) from receptacle (4)
3.
Rubber bushing
and slide bushing back over wires (1).
4.
Receptacle
CLEANING AND INSPECTION
WARNING
Cleaning solvent, used to clean parts is potentially dangerous to personnel and property. Do not use near
open flame or excessive heat. Flash point of solvent is 1380F (58.80C).
1.
2.
Inspect for cracks, breaks or other damage.
3.
Replace defective parts.
INSTALLATION OF 24-VOLT RECEPTACLE
1.
Insert bushing (3) over wires (1).
2.
Solder wires (1) to terminals at rear of receptacle
3.
Slide nut (2) over wires (1) and bushing (3) to
rear of receptacle (4). Tighten nut.

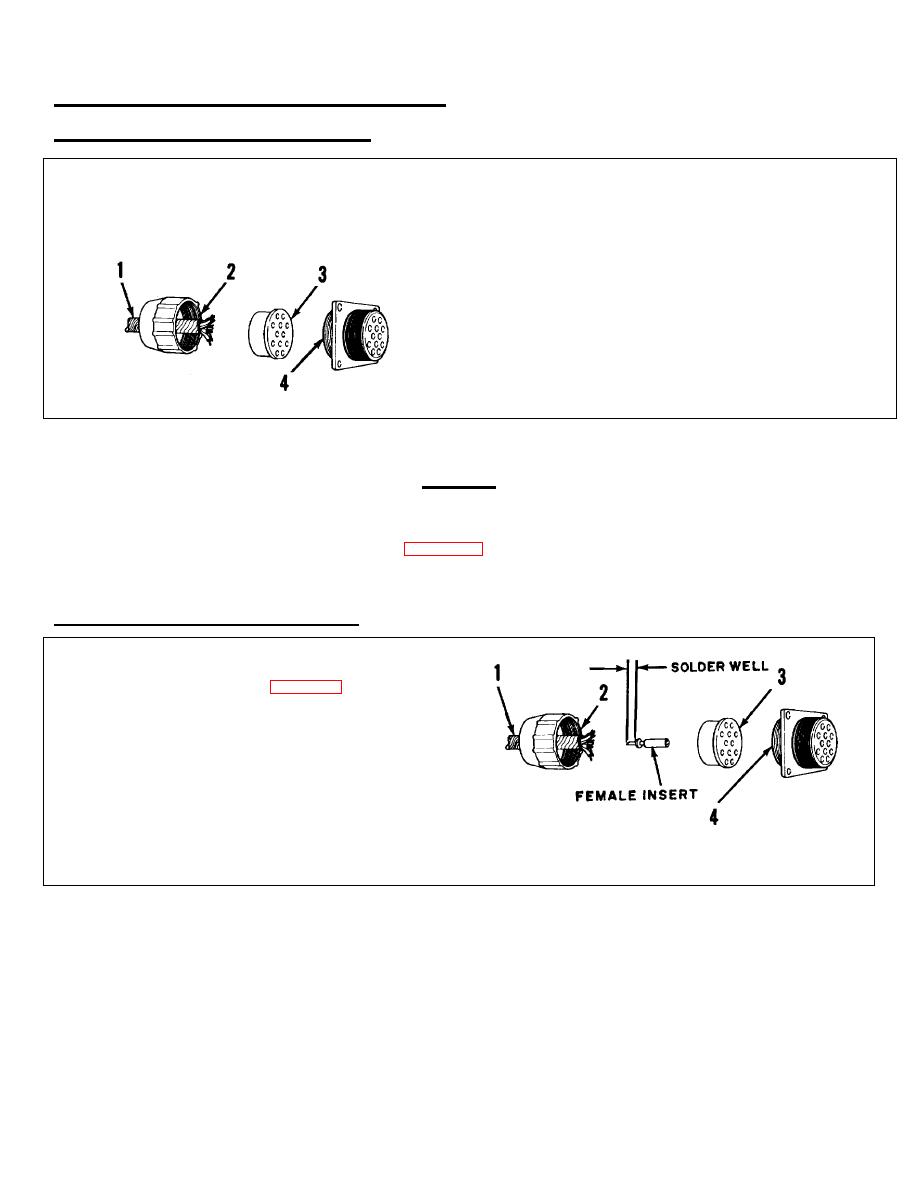

1. Wires
3.
Bushing
2. Nut
4.
Receptacle
