TM 9-2320-279-10-2
M984E1 General Operating Procedures (Cont)
2-73B. TOW M1070 (CONT).
(30)
Prepare disabled vehicle for towing (TM 9-2320-360-10).
(31)

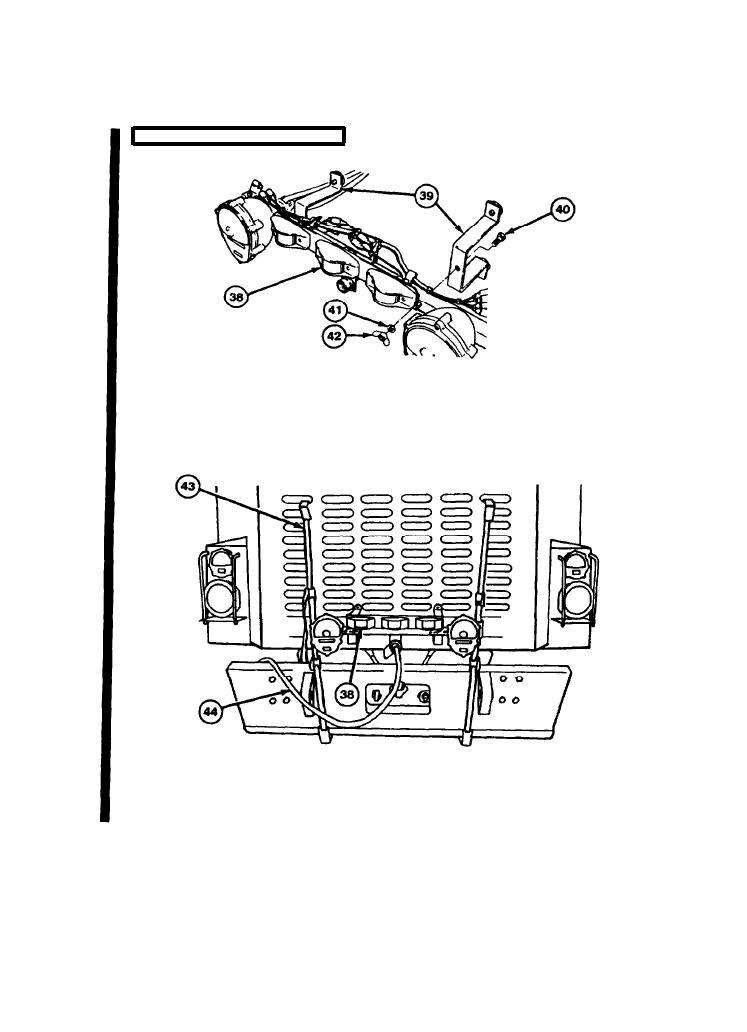

Remove emergency tow lights (38) and two brackets (39) from
stowage.
(32)
Install two brackets (39) on emergency tow lights (38) with two
screws (40), washers (41), and nuts (42).
(33)
Install emergency tow lights (38) on front of disabled vehicle and
fasten securely with straps (43).
(34)
Remove tow light cable (44) from stowage and connect to emergency
tow lights (38).
2-186.70
Change 3
