TM 9-2320-279-10-2
M984E1 General Operating Procedures (Cont)
2-76. TOW M123 (CONT).

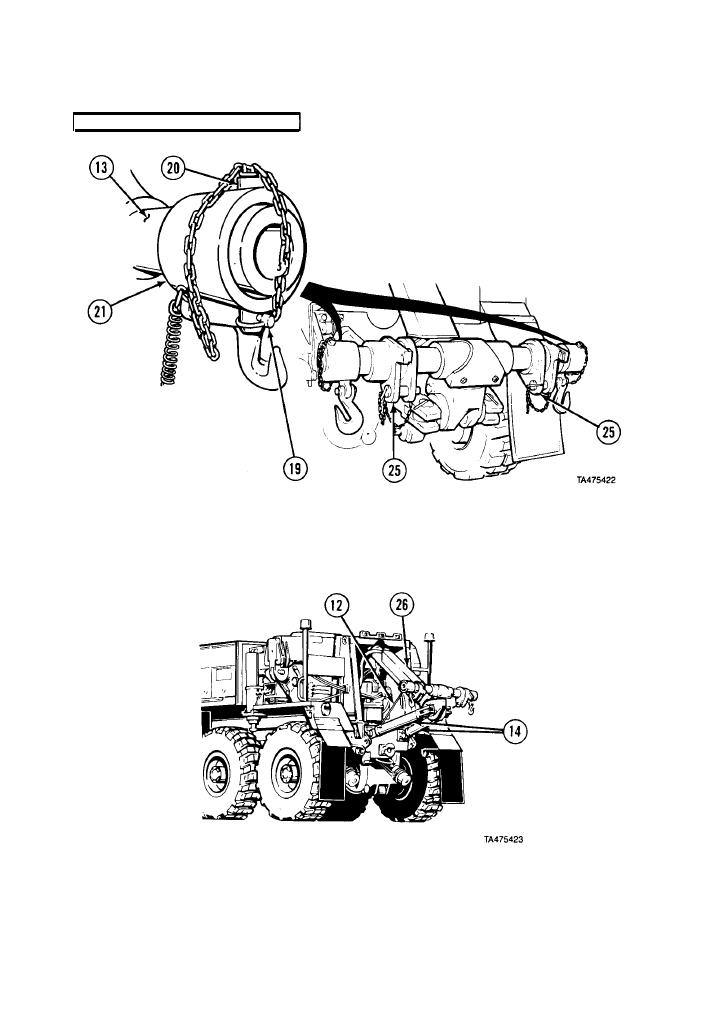

(23) Install two M977 front adapters (25) on crosstube (13).
(24) Install two end caps (21) on crosstube (13). Install two pins (20) and
quick pins (19).
(25) Install two springs (12) on tow cylinders (14).
(26) Operate retrieval controls to fully retract lift cylinder (26) and tow
cylinders (14).
2-256
