4-111. FRONT WALL SHIELD AND FRAME ASSEMBLY REPLACEMENT (M373A3, M373A4,
AND M373A5).
This Task Covers:
c.
Installation
a.
Removal
b.
Cleaning and Inspection
Initial Setup:
Tools/Test Equipment:
Materials/Parts:
Adhesive (Item 3, Appendix E)
Z General mechanic's tool kit
Coated cloth (Item 10, Appendix E)
Drill bit set
Dry cleaning solvent (Item 13, Appendix E)
Z Electric drill
Two locknuts
Rivet gun
Four gaskets
205 rivets
a.
REMOVAL
1.

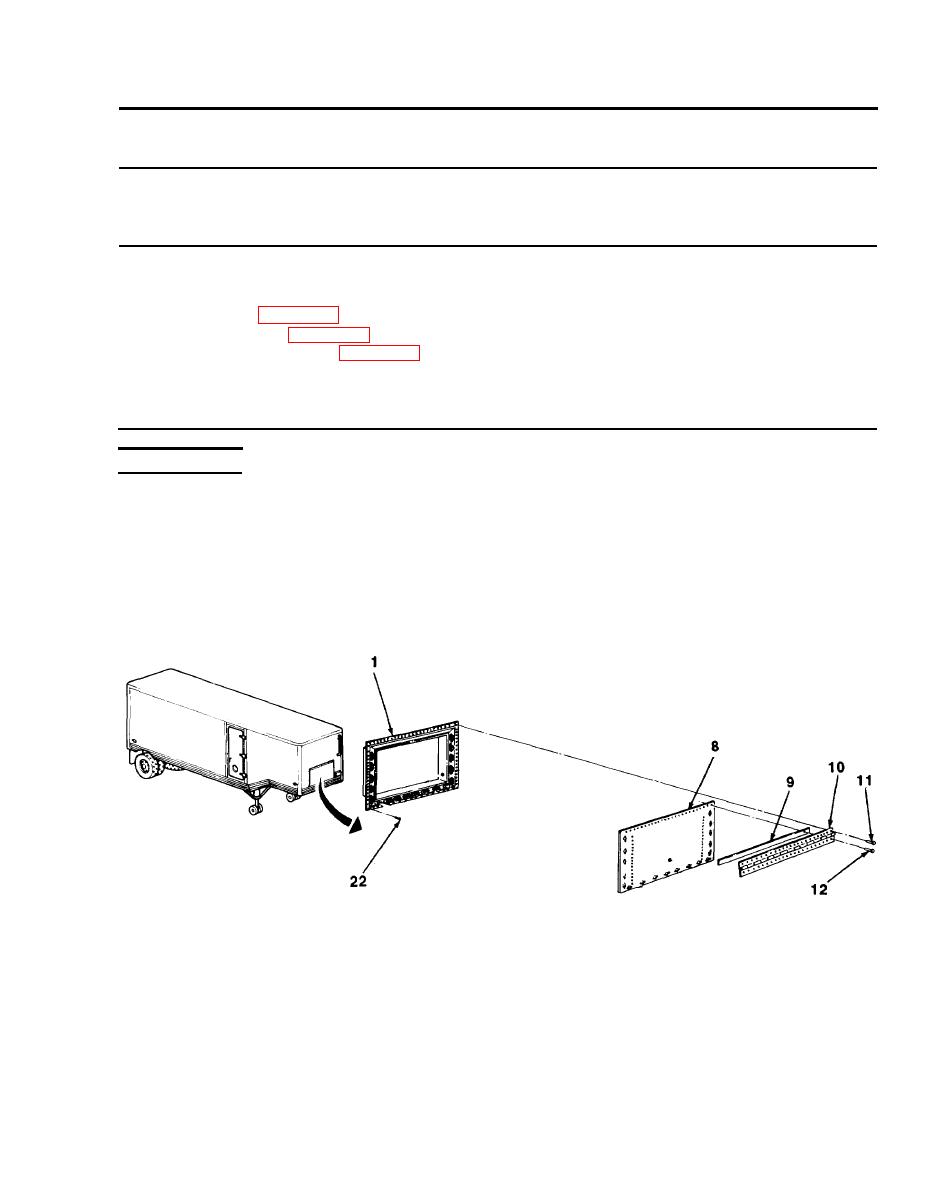

Remove 25 rivets (11) securing hinge (10) to semitrailer. Remove hinge and cover (8) from frame (l). Discard
rivets.
2.
Remove 59 rivets (22) securing frame (1) to semitrailer. Remove frame. Discard rivets,
3.
Remove 25 rivets (12) securing hinge (10) to cover (8). Remove hinge. Discard rivets.
4.
Remove coated cloth (9) from hinge (10). Discard coated cloth.
