TM 9-2330-285-14&P/TO 36A11-21-10-1
SERVICE BRAKE - CONTINUED
ACTION
REMARKS
ITEM
LOCATION
ASSEMBLY - CONTINUED

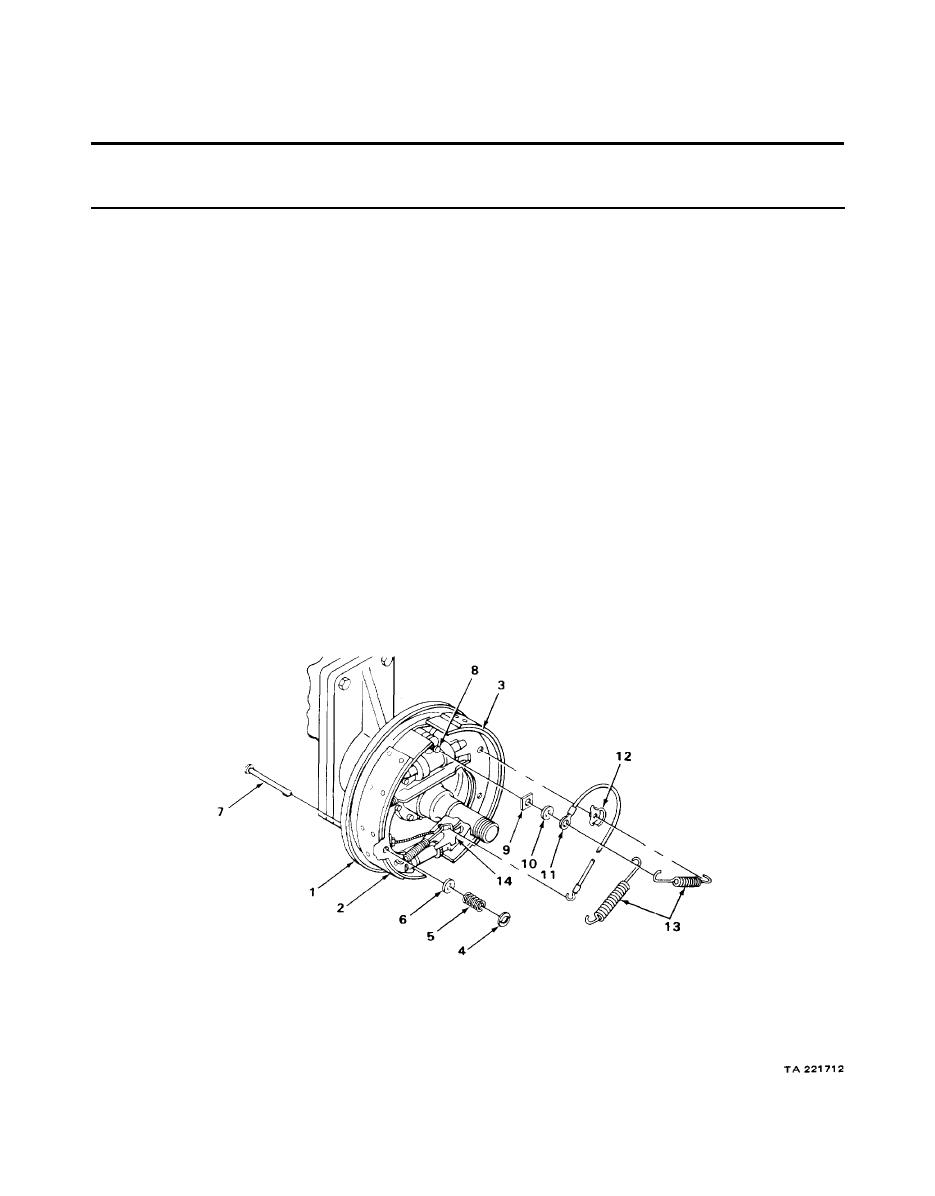

14 Backing plate (1)
Insert pins (7) through backing plate (1)
Two washers (4),
to front shoe (2)
two springs (5),
and shoes (2) and (3). Secure shoes (2) and
(3) with washers (4), springs (5) and washers
two washers (6)
and rear shoe (3)
(6) using spring retaining tool.
and two pins (7)
15 Anchor pin (8)
Retainer (9),
a. Install retainer (9) and washer (10).
washer (10) and
b. Install end of cable (11) with the ring
cable (11)
on it.
16 Shoes (2) and (3)
Guide (12) and
a. Install guide (12) on rear shoe (3).
b. Hang cable (11) over guide (12).
two springs (13)
to anchor pin (8)
c. Install springs (13) using brake spring
pliers.
Cable (11)
a. Pry lever (14) upward using a flat-tip
17 Lever (14)
screwdriver.
b. Install hooked end of cable (11) into
lever (14).
4-101
