TM 9-2330-287-14&P
AIRHOSE, REACH TUBE - CONTINUED
ACTION
LOCATION
ITEM
REMARKS

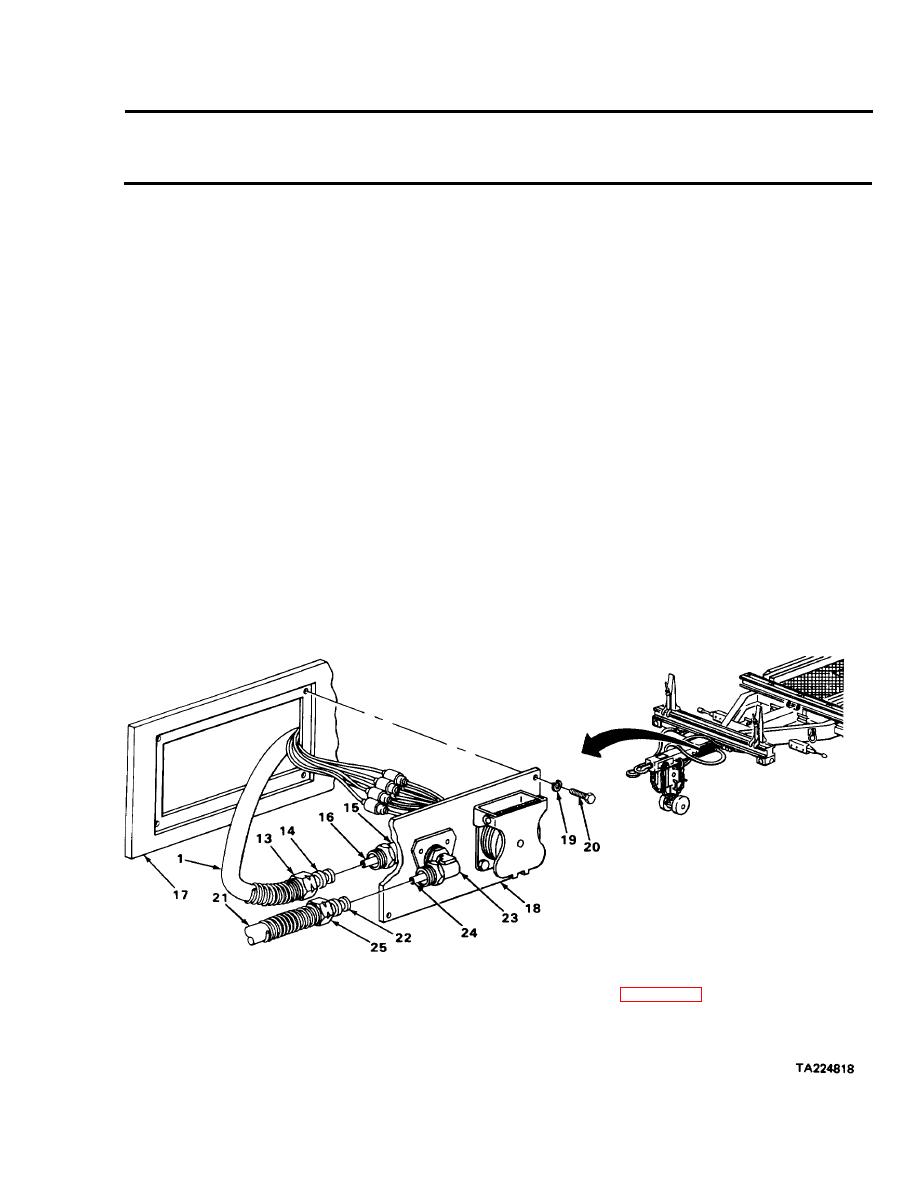

19. Hose (1)
Nut (13) and
Position on hose (1).
sleeve (14)
20. Fitting (15)
Hose (1)
Install onto guide (16).
21.
Nut (13)
Using 1- and 1 1/16-inch wrenches,
install.
22. Reach tube, forward
Plate (18)
Position, alining mounting holes.
section (17)
23. Plate (18)
Four Iockwashers
Using socket and handle, install.
(19) and four
capscrews (20)
NOTE
Repeat steps 19 thru 23 for opposite side.
24. Hose (21)
Sleeve (22)
Position on hose (21).
25. Fitting (23)
Hose (21)
Install onto guide (24).
26.
Nut (25)
Using 1- and 1 1/16-inch wrenches,
install.
NOTE
FOLLOW-ON MAINTENANCE: Test for leaks (page 4-71).
TASK ENDS HERE
4-83
