KINGPIN
2-7.
a.
Used to couple semitrailer to towing vehicle.
b. Protrudes from the center of the fifth wheel upper plate of the semitrailer
(1, fig. 2-7).
Kingpin
Figure 2-7.
2-8.
SERVICE LIGHTS
The service lights on the M871 consist of the following lights:
a.
Four red clearance lights (1, fig. 2-8) on rear
q
One amber clearance light (2) on each side
q
Two blackout lights (3) on rear
q
Two stop, turn and taillights (4) on rear
q
Three red clearance lights (5) mounted on a bar
q
One amber reflector (6) on each side
q
Four red reflectors (7) on rear
q

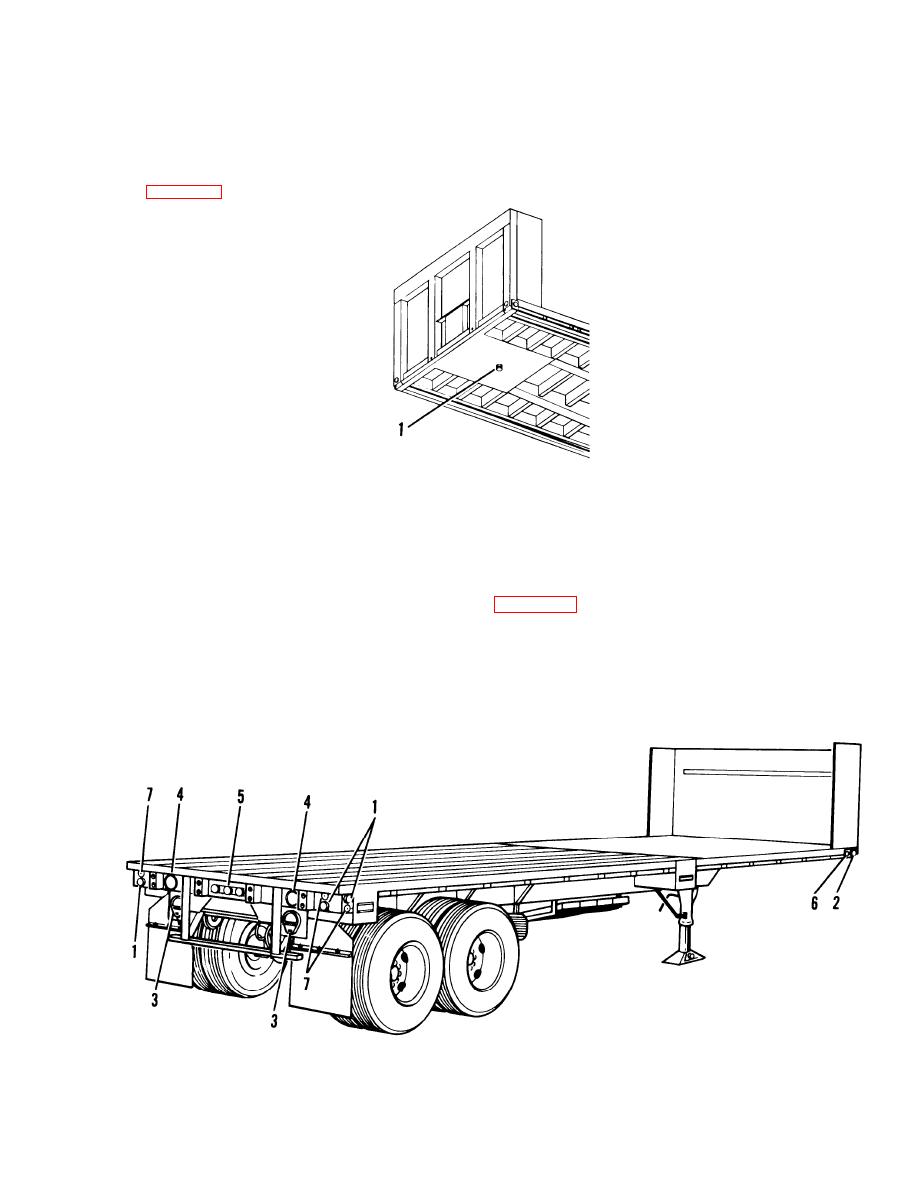

Service Lights and Reflectors (M871)
