CAUTION
not attach welding ground clamps to u-bolts, springs
DO
or axles except at designated weld points. These parts
should be protected from weld spatter.
(6) Weld the unwelded alignment plate to the axle seat to match the pre-welded
plate. Welds are per Class 2, MIL-STD 1261.

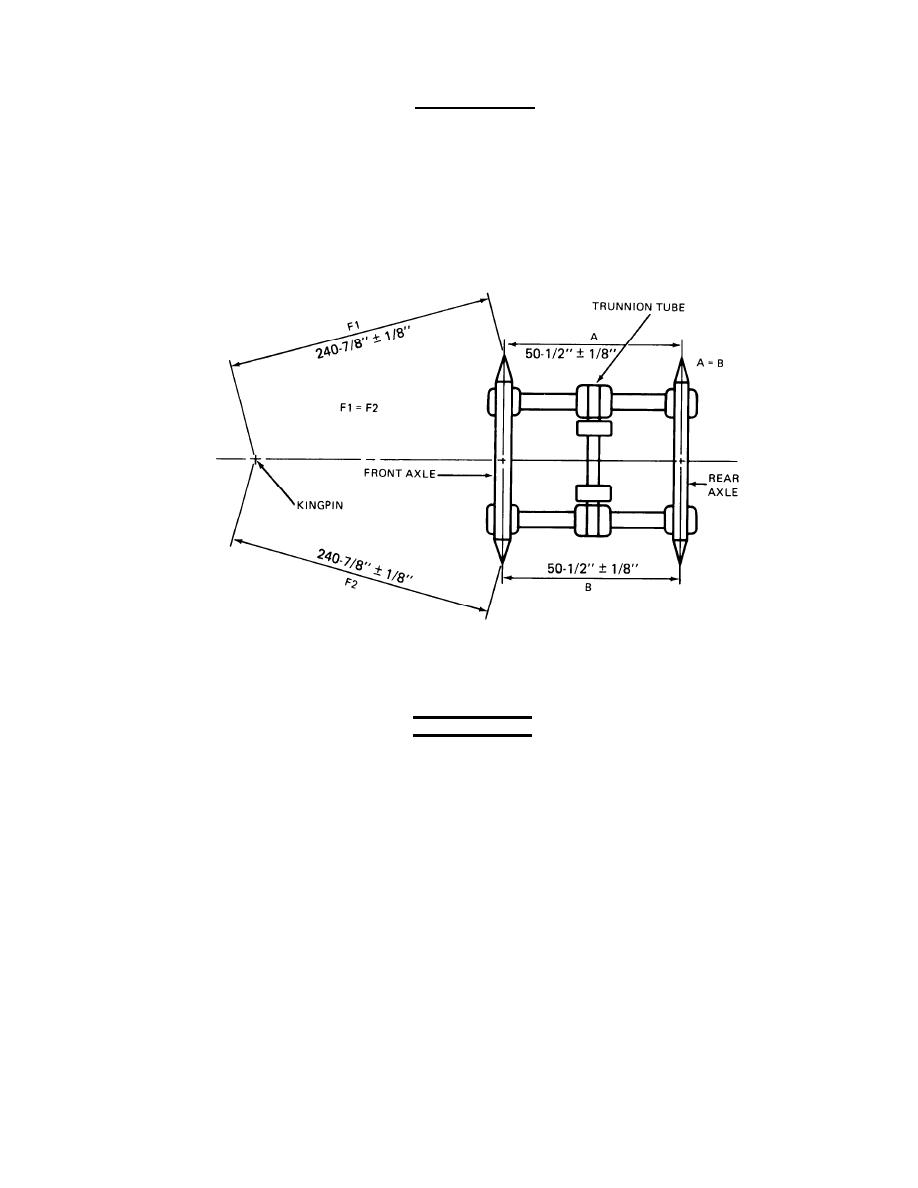

Figure 5-6.
Axle Alignment
WARNING
It is essential that torque values be maintained to
insure proper operation of the suspension system. The
torque values of the suspension bolts and nuts must be
checked after the initial break-in period of 1,000
miles (1,600 km) and every three months thereafter.
Failure to do so may cause injury to personnel, damage
to equipment and will void the warranty.
(7) Torque u-bolt nuts to 300 lb ft (408 Nm).
(8) Torque spring cap nuts to 180 lb ft (244 Nm).
(9) If installing front axle, go to step 7 of front axle installation
procedure. If installing rear axle, go to step 7 of rear axle installation
procedure.
TASK ENDS HERE
