TM 9-2330-371-14&P
WIRE HARNESS - CONTINUED
ACTION
REMARKS
ITEM
LOCATION
INSTALLATION - CONTINUED
Put on.

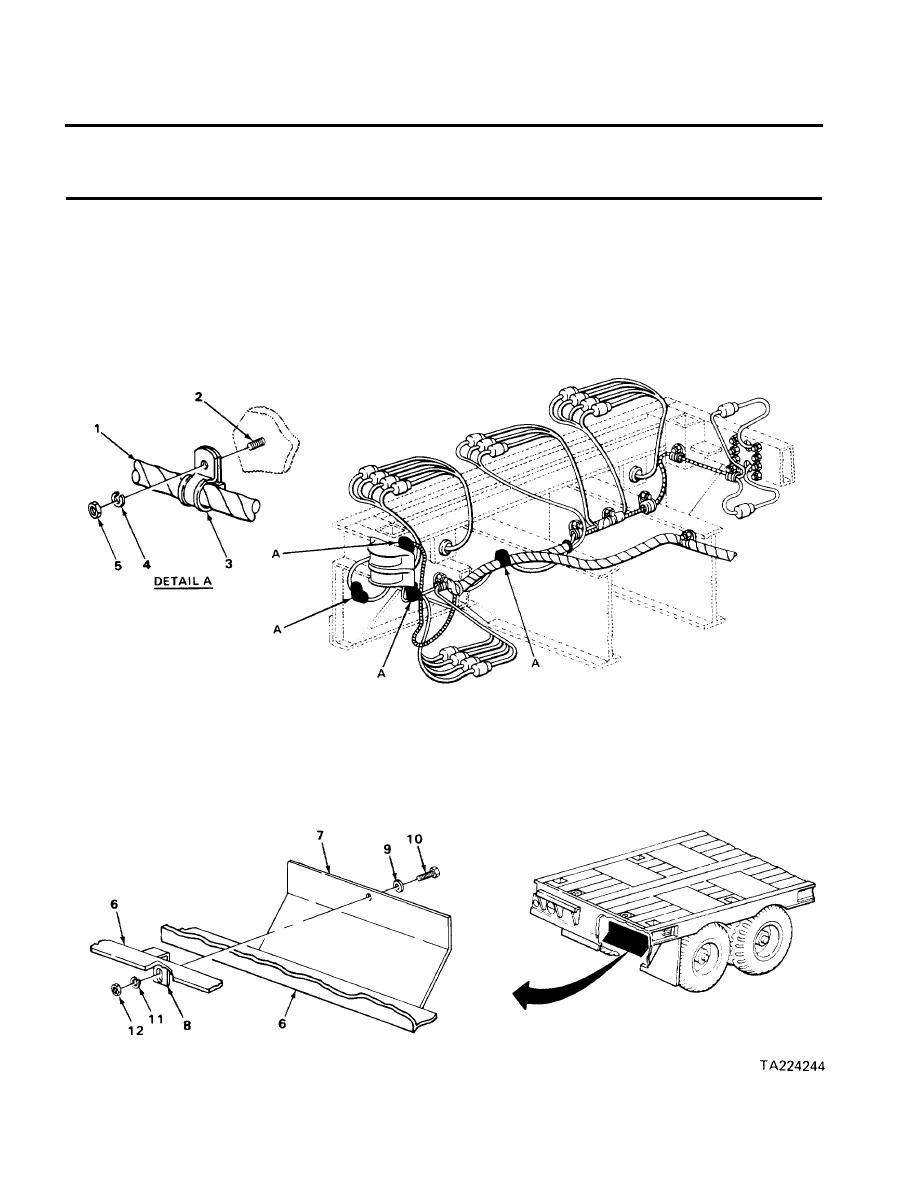

Four clamps (3)
Wire harness (1)
86.
and four studs (2)
Put on and tighten using 7/16-inch socket
Four Iockwashers
Four studs (2) and
87.
and handle.
(4) and nuts (5)
four harness
clamps (3)
Close.
Left shield door (7)
Frame (6)
88.
Washer (9), screw
Put in and tighten using 9/16-inch wrench,
Left shield door
89.
(10), Iockwasher
9/16-inch socket and handle.
(7) and door
(11) and nut (12)
Repeat steps 88 and 89 for right side.
bracket (8)
TASK ENDS HERE
4-54
