TM 9-2330-388-14
1-8.
Tabulated Data (cont'd)
Dispensing Hose
Landing Gear:
Length ................................................. (Each)1680 in.
Type................................Vertical support w/foot pads
Quantity..................................................................... 2
Operation ............................... Hand crank, two-speed
Nominal Size .......................................... 2 in. and 4 in
Pump (3 in. Hale Type, Model 30 FB)
Bulk Servicing Hose:
Type................................... High pressure, centrifugal
(Two w/male and female connectors,
Drive ...............................................Shaft from engine
One w/female connector, both ends)
Length.................................. (1) 165 in. (2) 168 in
Emergency Valve Control:
Quantity .............................................................. 3
Type..........................................................Full release
Nominal Size .................................................. 4 in
Control ................................................. Flexible Cable
side of vehicle on frame between and above two tanker
1-9.
Identification and Instruction Plates (Fig. 1-2
axles. It identifies tire pressures for highway and sand
through 16)
driving conditions.
a.
Vehicle Identification Plate. Plate is mounted on
d.
Nuclear, Biological, Radiological (NBC) Plate.
frame on left side and near the front of vehicle. It
Plate is mounted of front cover of water dispensing unit
identifies vehicle model, weight, dimensions, vehicle
on left side of vehicle. It warns "If NBC exposure is
identification number, and contract number.
suspected, all air filter media will be handled by
personnel wearing full NBC protective equipment. See
b.
D.O.T. Data Plate. Plate is mounted on front
operator/ maintenance manuals."
frame on the right side between the service brake
coupling and the front marker light.
It identifies
e.
Transportation Plate. It is mounted on left side
manufacturer's serial number, D.O.T. (Department of
of vehicle on front lower panel of tool box below latch. It
Transportation) specifications, shell material, welding
provides tiedown information for rail or air shipment.
specification, and lining.
c.
Tire Pressure Plate. Plate is mounted on left

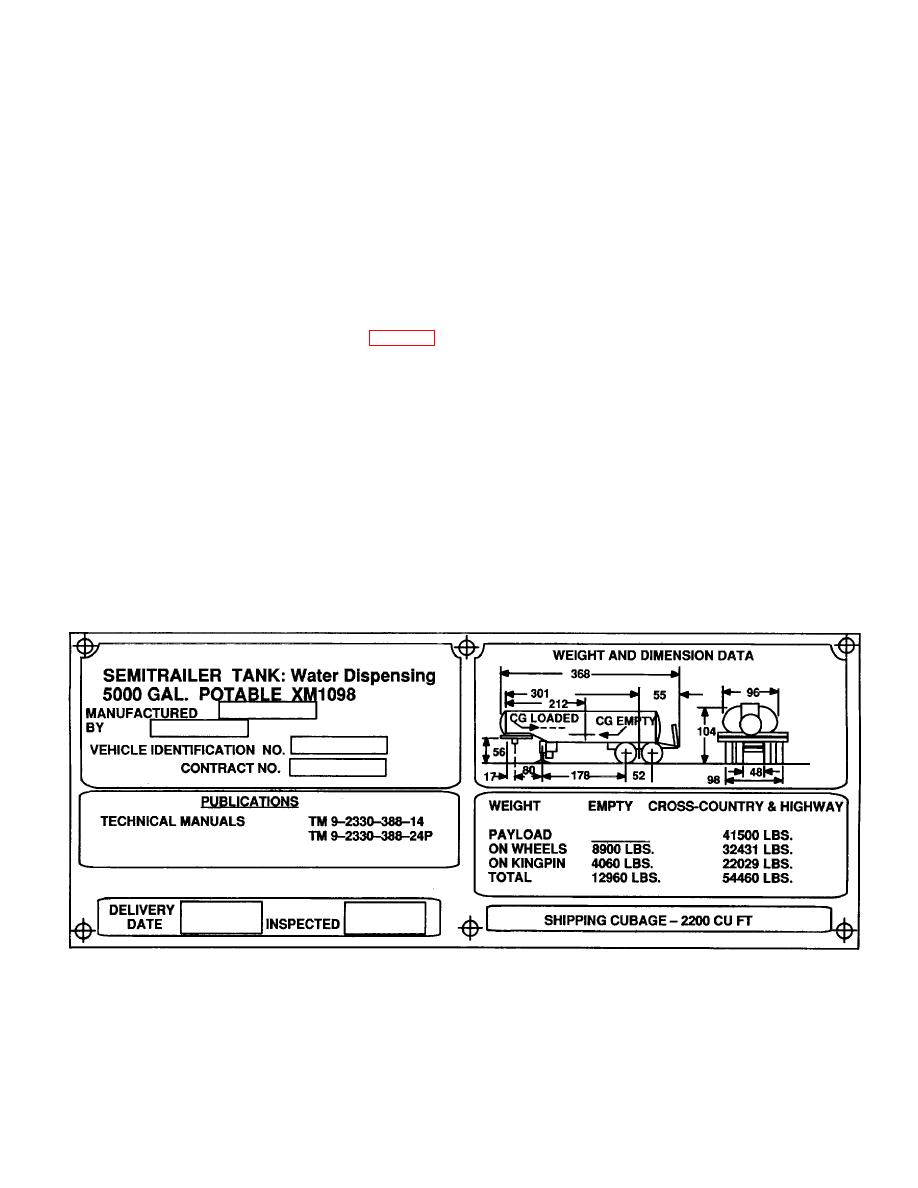

Figure 1-3. Identification Plate
1-4
