TM 9-2350-222-10-2
PREPARE FOR FIRING (ADJUST SIGHTS) - Continued
To Sight M105F Telescope:
Make Sure:

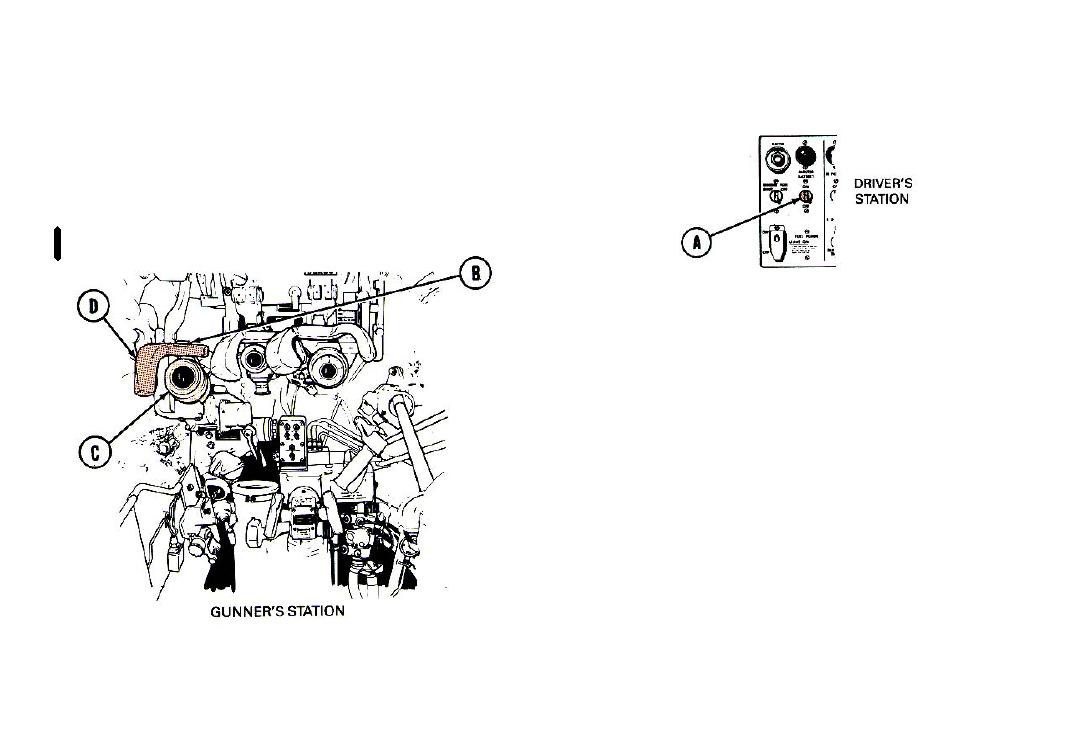

MASTER BATTERY switch (A) is set to ON.
Laser filter is installed (page 2-348.1) if required.
1.
Loosen finger adjust screw (B) on telescope (C).
2.
Adjust headrest (D) to desired viewing position.
3.
Tighten finger adjust screw (B).
NOTE
If sight is being adjusted under daylight conditions,
go to step 8.
If sight is being adjusted under night or low light
conditions, go to step 4 or 5.
If vehicle power is being used, go to step 4. Skip
step 5.
If vehicle power is not available, and M50
instrument light is being used, skip step 4 and go to
step 5.
TA252783
Change 1 2-369
