A.
WHEN
POWER
PLANT
HAS
BEEN
REMOVED FROM VEHICLE, PLACE ON
SUITABLE STAND WHICH WILL ALLOW
AMPLE WORKING AREA ON ALL SIDES OF
POWER PLANT.
B. POMWER PLANT MAY BE SET ON CLEAN HARD
C. PLACE MUFFLER ON BLOCK TO PREVENT
SURFACE. SUPPORT FRONT OF POWER PLANT
DAMAGE TO EXHAUST ELBOW.
(NOT
WITH 4 X 4 WOOD BLOCK PLACED BENEATH
REQUIRED IF ENGINE ACCESS COVER HAS
RADIATOR SUPPORT AS SHOWN. BLOCK MUST
BUILT-IN
GUARD.)
NOT CONTACT COOLANT CROSSOVER TUBE
WE 12173

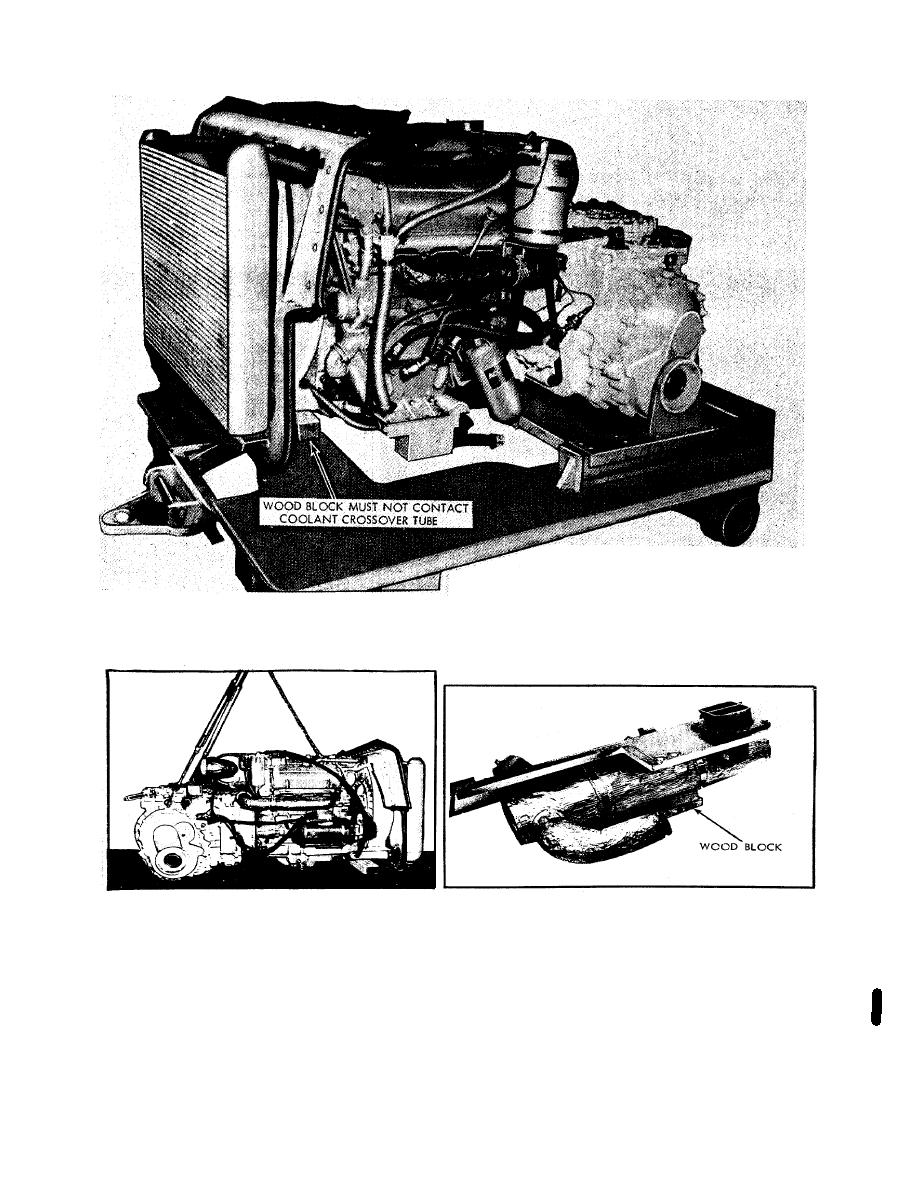

Figure 9-6. Removal/installation - power plant (4 of 4)
9-9
