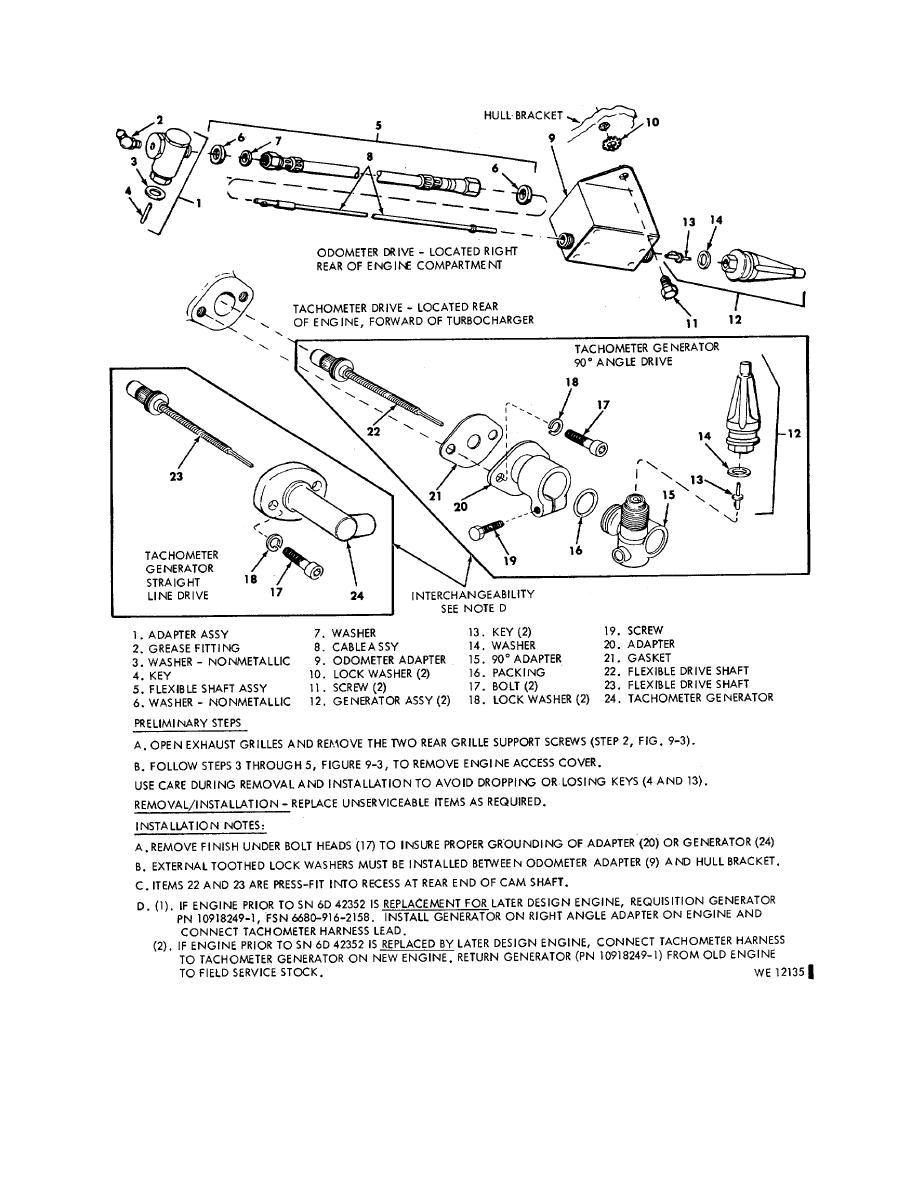

Figure 9-115. Removal/installation - speedometer and tachometer generators, and odometer adapter
Figure 9-117. Replacing cable terminals and connectors.

TM-9-2350-230-12 Armored Reconnaissance/Airborne Assault Vehicle Full-Tracked 152 MM M551 2350-873 5408 Manual Page Navigation
  474    475    476    477    478  479  480    481    482    483    484
