REPLACE DRIVER'S/COMMANDER'S DISPLAY (DVE) (M58 ONLY) -- Continued
0035 03
8.

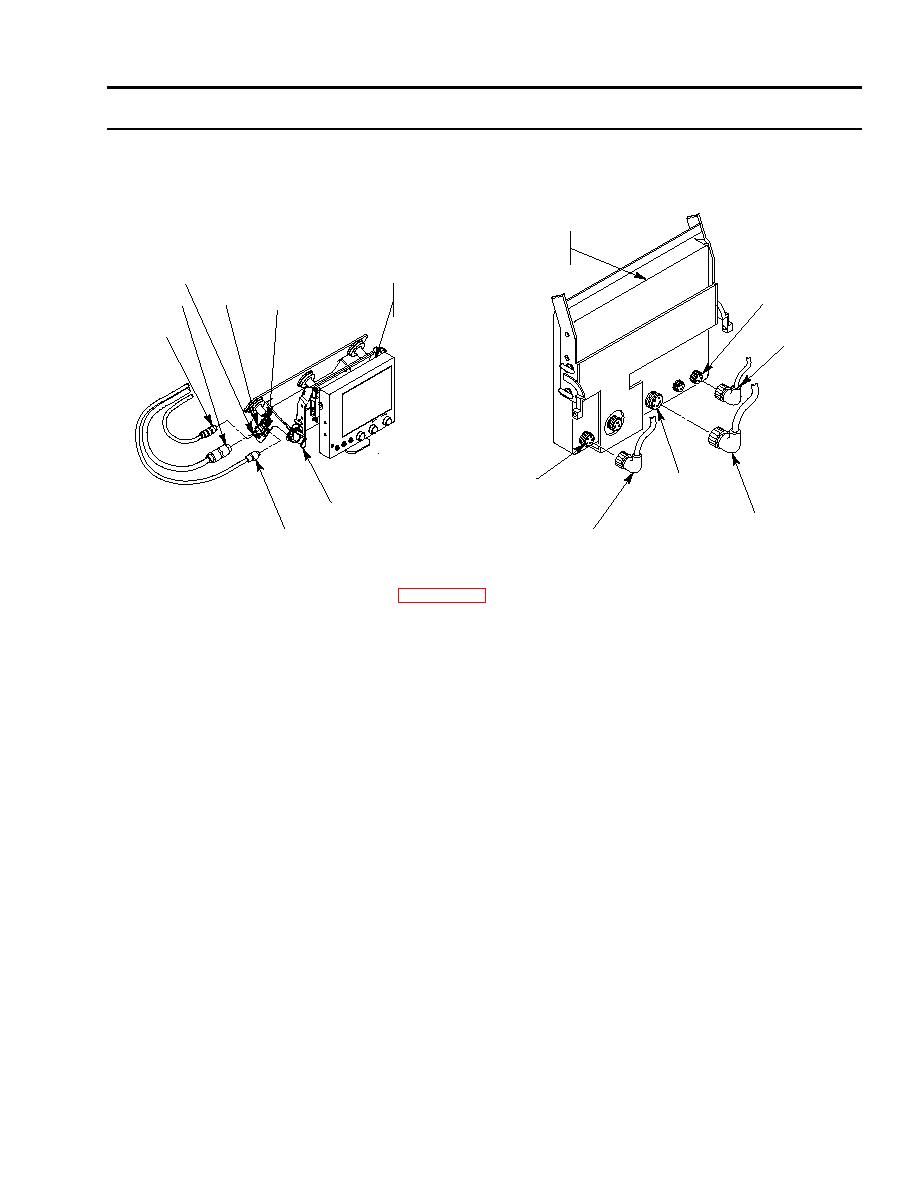

If commander's display is installed in vehicle, remove connectors W2P1, W2P2, and 516B P2 in dummy connectors on
the side of the guide and install connector W3P1 to connector A1J5, connector W2P2 to connector A1J2, and connector
516B P2 to connector A1J1 on driver's display.
DRIVER'S
DISPLAY
A1J5
DRIVER'S
A1J2
A1J1
A1J1
W2P2
DISPLAY
W3P1
516BP2
IN
GA
R
SO
N
SE
EL
V
LE
TO
AU
AY S
PL ES
DISHTN
IG
BR
Y
RIT
TO
LA
AU
POT-HOT
WH
EO
VID
OR
NS
SE
R
WE
T
-HO
LK
POON
B
IT
EX
F
OF
A1J5
A1J2
GUIDE
W2P2
516BP2
W3P1
FOLLOW-THROUGH STEPS
1.
Install driver's center periscope, if removed (WP 0033 00).
END OF TASK
