LOWER/STOW TRIM VANE
THIS WORK PACKAGE COVERS:
Lower (page 0039 00-1).
Stow (page 0039 00-2).
INITIAL SETUP:
Maintenance Level
Equipment Condition
Operator
Carrier stopped
Personnel Required
Soldier (2)
WARNING
Trim vane is heavy. Personnel can be injured and equipment damaged. Have helper assist.
Open and lower trim vane slowly. Avoid being caught between trim vane and hull or ground.
LOWER
1.

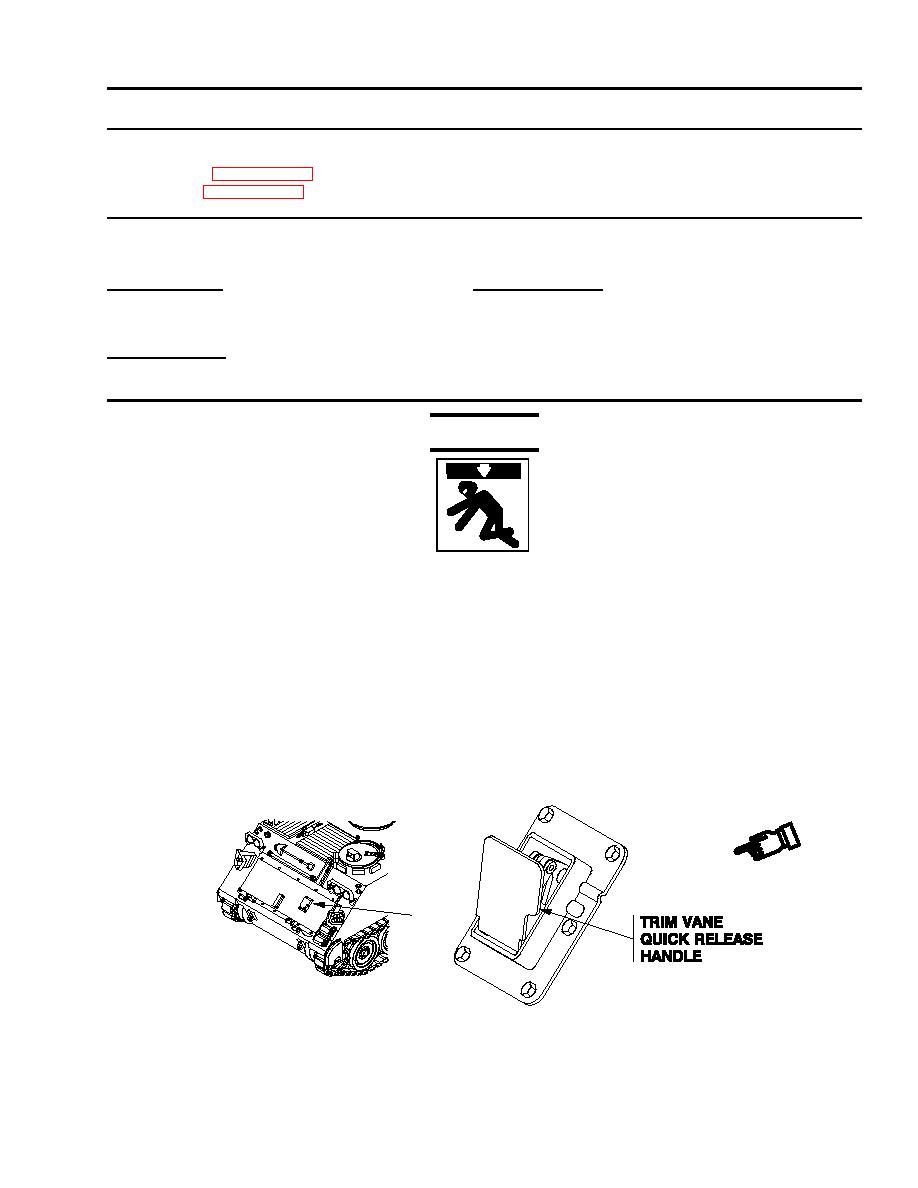

Pull trim vane quick release handle to disengage quick release from extension linkage.
