TM 9-2350-277-10
PLUG/SETSCREW GUIDE FOR ARMOR MOUNTING PROVISION HOLES
INTRODUCTION
This work package shows the location of plugs and setscrews in armor mounting provision holes in the M113A3 carrier.
PROTECTIVE PLUGS FOR ARMOR MOUNTING PROVISION HOLES

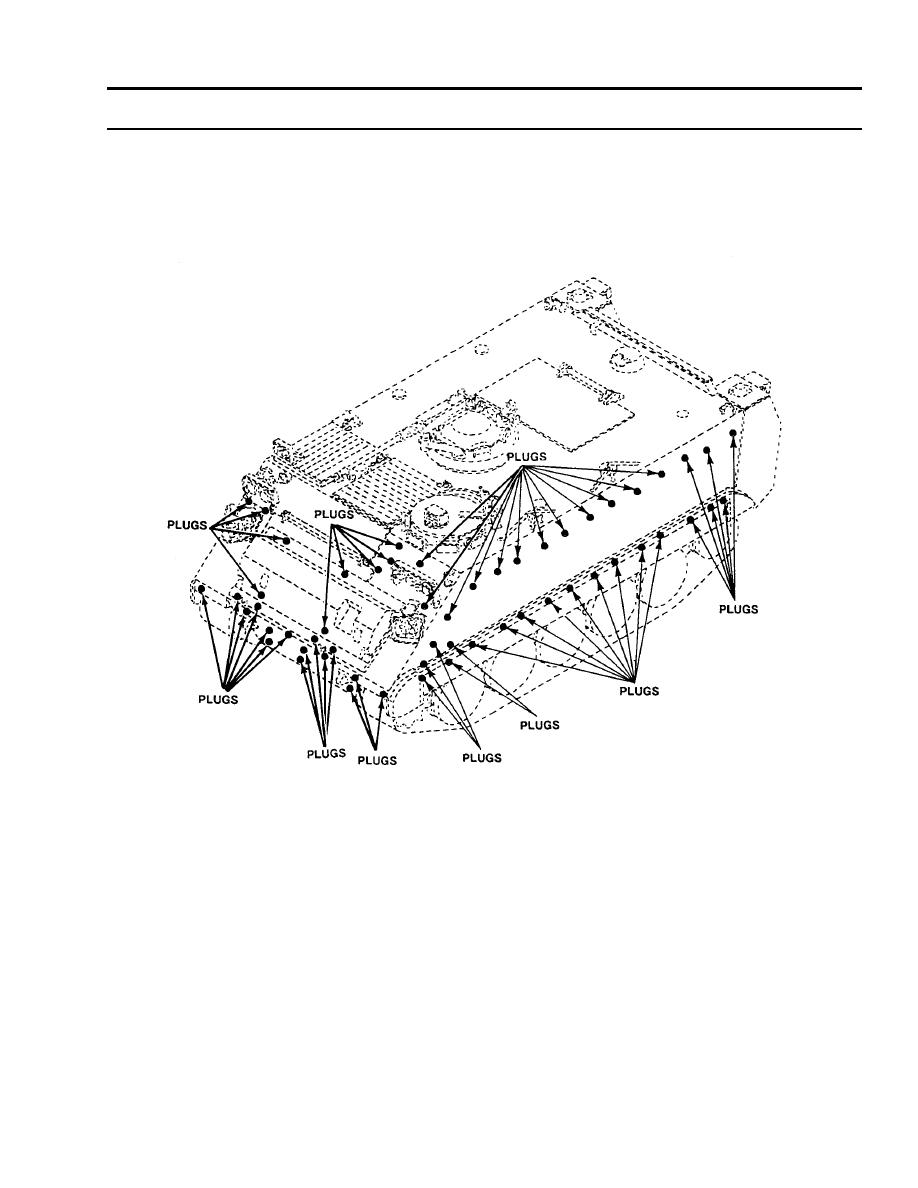

CARRIER FRONT AND SIDES
NOTE
The left side of the carrier is shown. There are corresponding plugs on the right side of the
carrier.
0107 00-1
