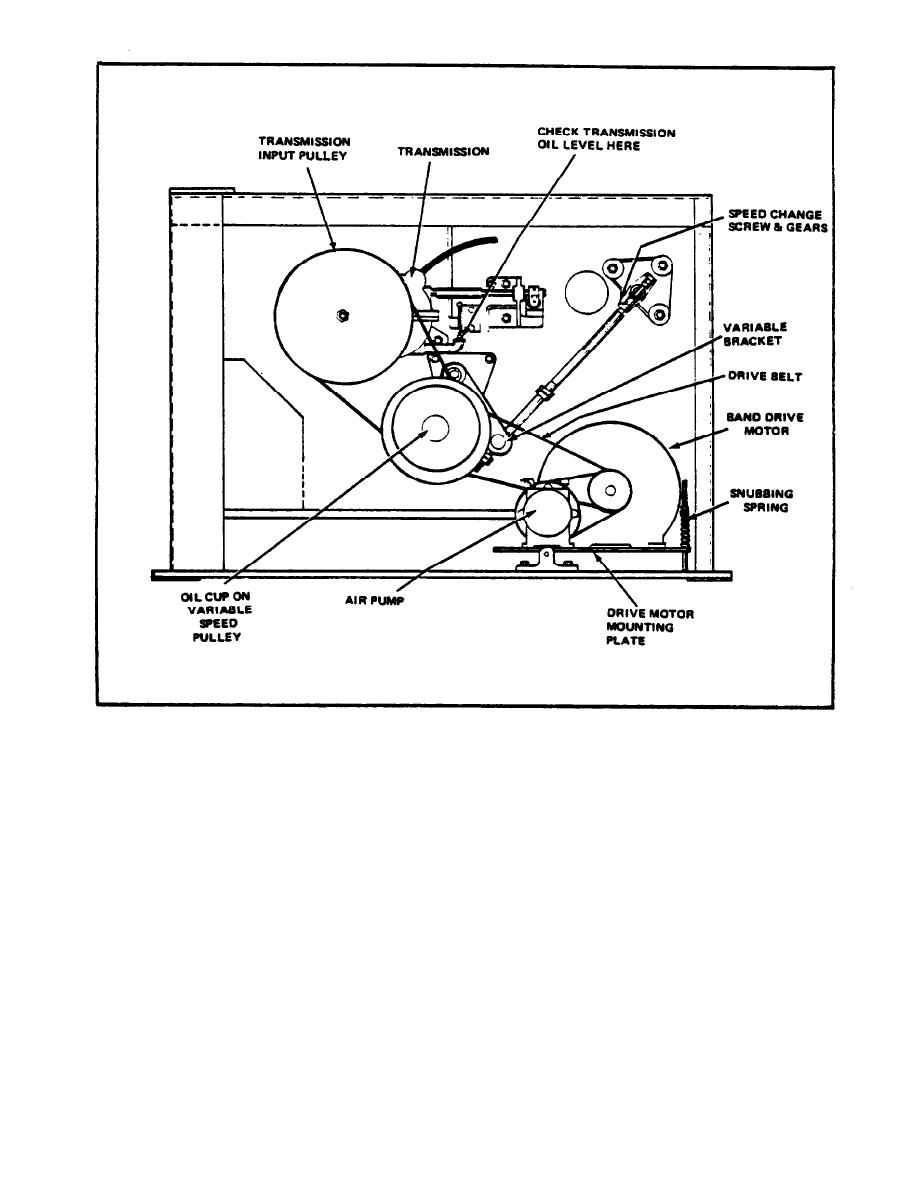

Rear view of Model 2614-1 drive compartment.
TRANSMISSION
Drain, flush and refill after first month and at least every six months, thereafter. Fill to top
of fill pipe, but do not overfill. Use an ASTM Grade No. 315 industrial oil (see Lubrication
Chapter). Check for seal leaks around shafts.
Any rough operation, vibration, loud or unusual noises should be investigated immediately.
It is recommendad that the transmission be returned to the factory for repairs. Installing a
new transmission correctly is extremely important because of the careful alignment involved.
If the shifter plate has been removed for any reason, do not attempt to operate lever.
18
