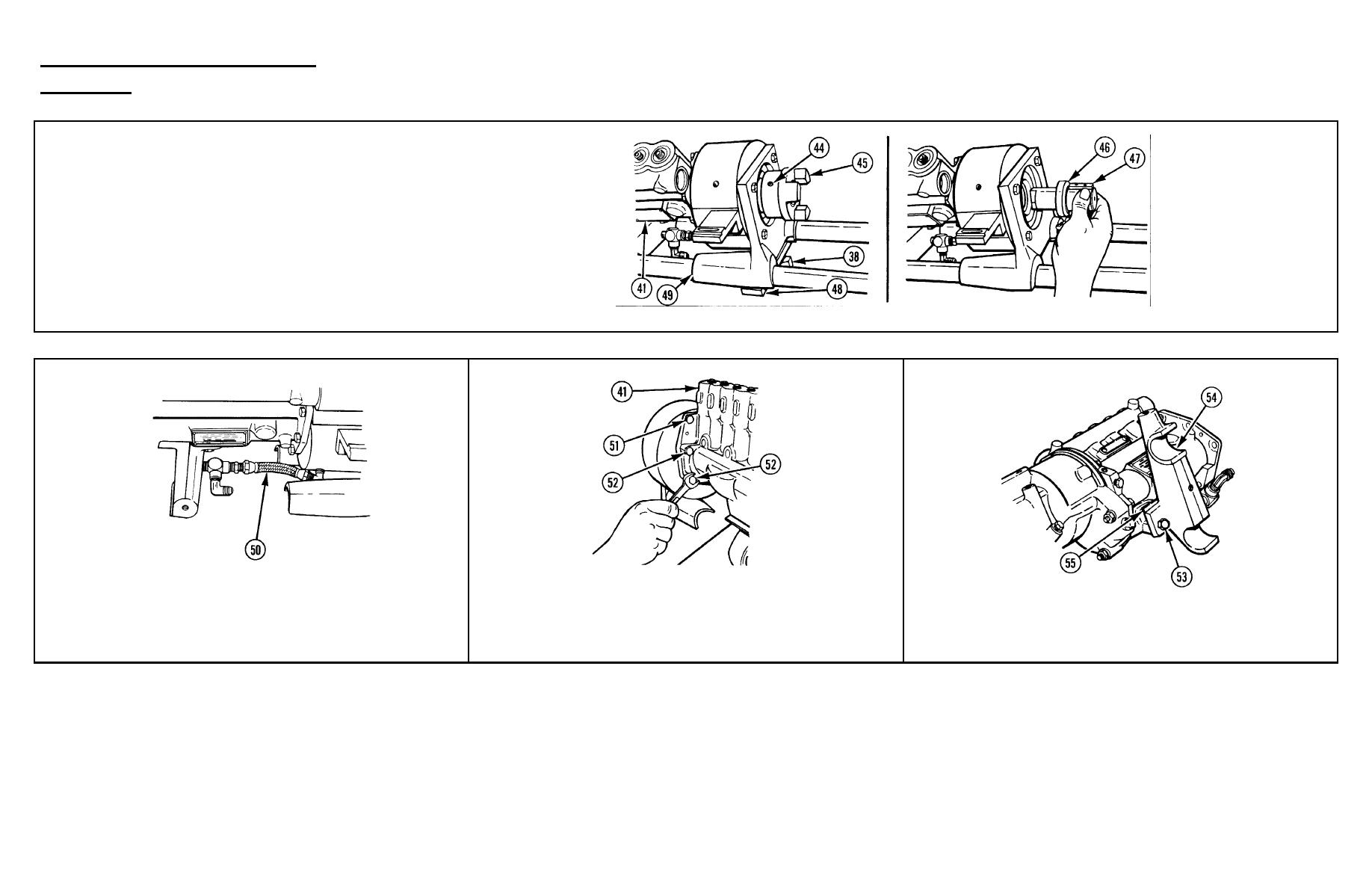

2-20. CATERPILLAR FUEL INJECTOR PUMP (cont)
REMOVAL (cont)
18
SETSCREW (44). Loosen.
19
COUPLING (45), SHAFT (46), AND
KEY (47). Remove.
20
HAND KNOB ASSEMBLY (38) AND
CLAMP BAR (48). Remove.
21
FUEL INJECTOR PUMP (41) WITH
ADAPTER BRACKET (49). Remove
from tester.
23
TWO SCREWS (51) AND FOUR
22
OIL DRAIN HOSE (50). Remove.
SCREWS (52). Remove.
25
TWO SCREWS (53), SUPPORT NO.
1 (54), AND GASKET NO. 1 (55).
24
FUEL INJECTOR PUMP (41).
Remove.
Remove.
