14-33. SWING-UP LANDING GEAR (cont)
CLEANING AND INSPECTION
1.
Clean mud and dirt from all exposed surfaces with water and stiff brush.
2.
Check operation of landing gear. Lubricate as required. Replace if defective. No repair is authorized.
INSTALLATION
1.
Position landing gear and secure in place with
2.
Position two braces (4 and 6) and secure in
place with four pin and chain assemblies (3, 5,
and 7).
3.
Using crank assembly, lower landing gear leg to
ground.
4.
Remove towing vehicle or blocking.

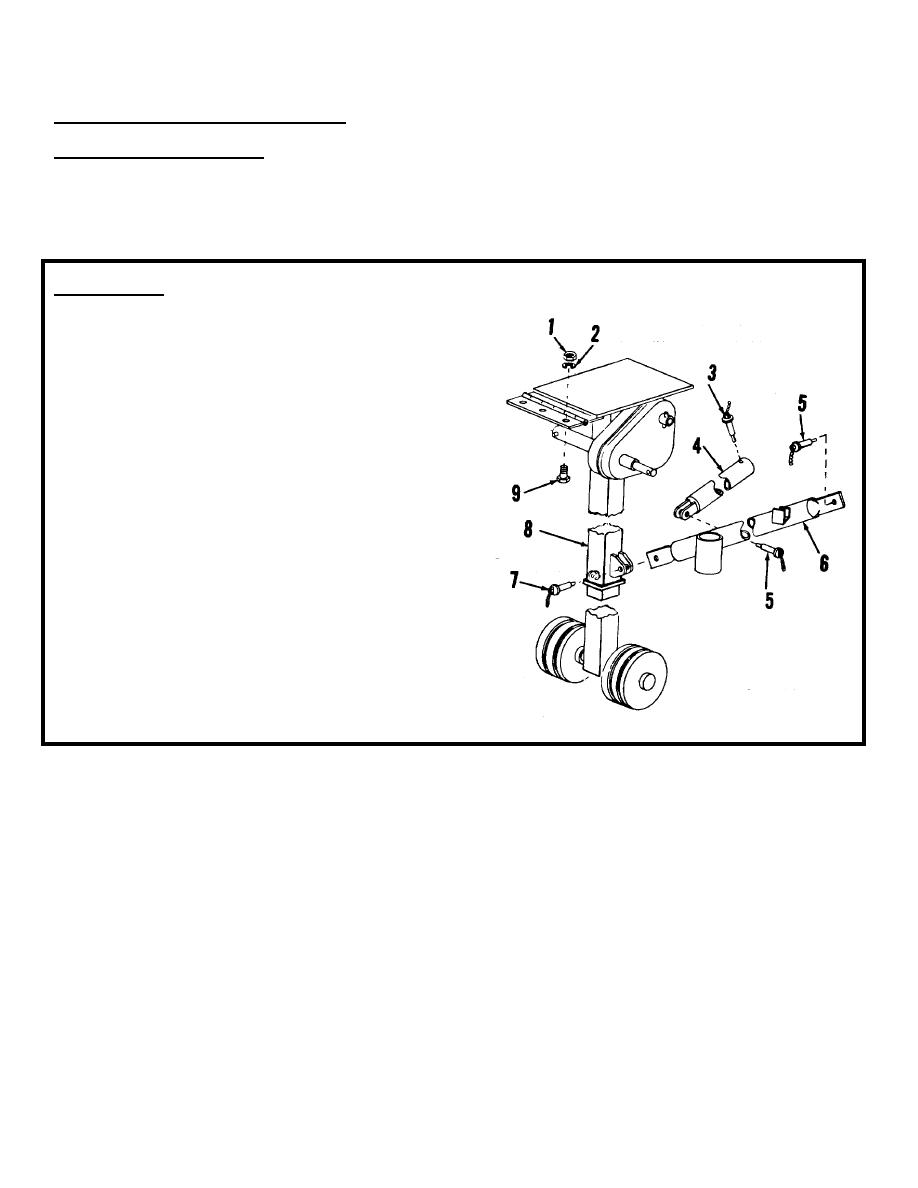

1.
Nut
2.
Lock washer
3.
Pin and chain assembly
4.
Brace
5.
Pin and chain assembly
6.
Brace
7.
Pin and chain assembly
8.
Leg
9.
Screw
TA 314809
