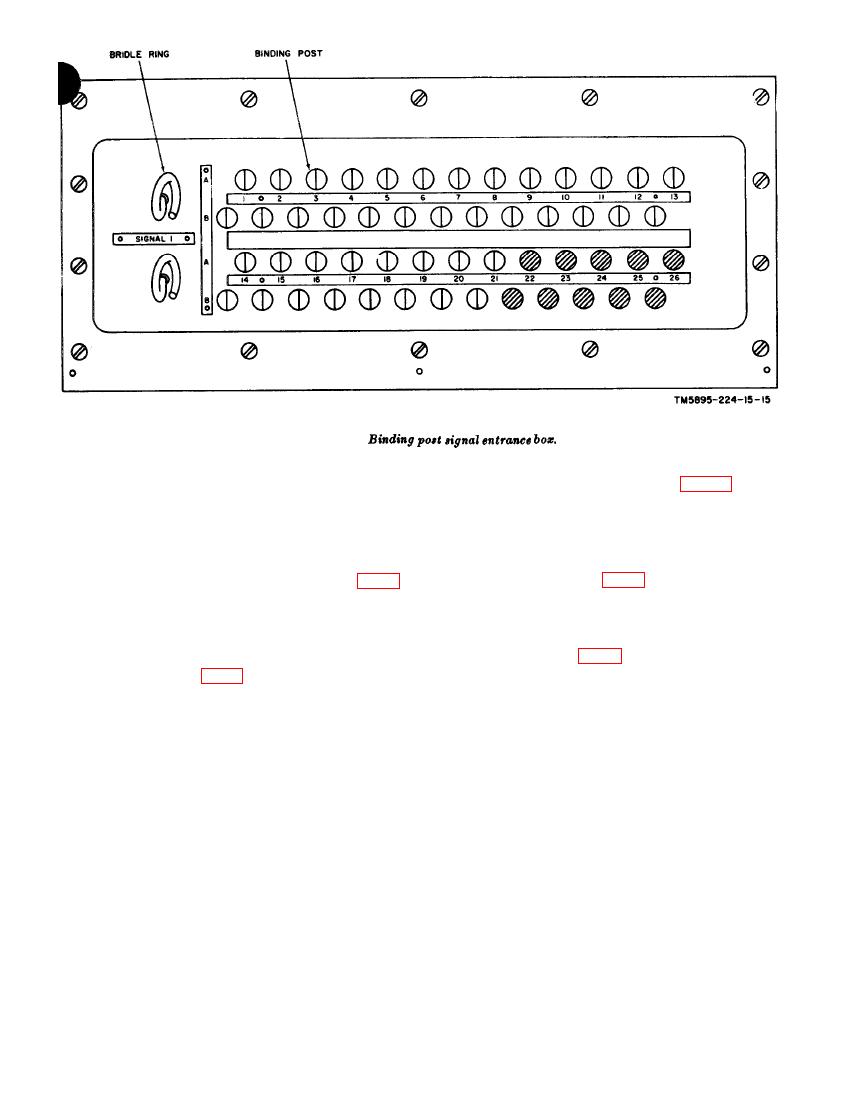

FIGURE 9. BINDING POST SIGNAL ENTRANCE BOZ

TM-11-5895-224-15 Operations Central AN/MCS-32 Manual Page Navigation
11

Figure 9.

(5) S B - 2 2 /PT cable stub (fig. 23). The

cable with a watertight power con-

SB-22/PT cable stub is 3 feet long;

nector one end, and red, white,

and is equipped with a 26-pin con-

and black prepared leads on the other

nector on one end and prepared leads

end.

on the other end.

(3) C a b l e A s s e m b l y , T e l e p h o n e C X -

(6) Patch cords (fig. 3). The patch cords

4566/G and Reel RC-485/U (fig. 3).

are two-conductor cords, equipped

The CX-4566/G is 250-feet long and

with telephone plugs at each end.

is equipped with a 26-pair cable con-

nector on each end.

(7) Telephone and teletypewriter connect-

ing cords (fig. 2). The telephone (4

(4) C a b l e A s s e m b l y , T e l e p h o n e C X -

feet and teletypewriter (6 feet) con-

4 7 6 0 / U (fig. 2). The CX-4760/U is

necting cords are two-conductor cords

a 26-pair cable stub that is 15 feet

equipped with telephone plugs on one

long and is equipped with a 26-pair

end and prepare leads on the other

cable connector on one end and pre-

end.

pared leads on the other end.
